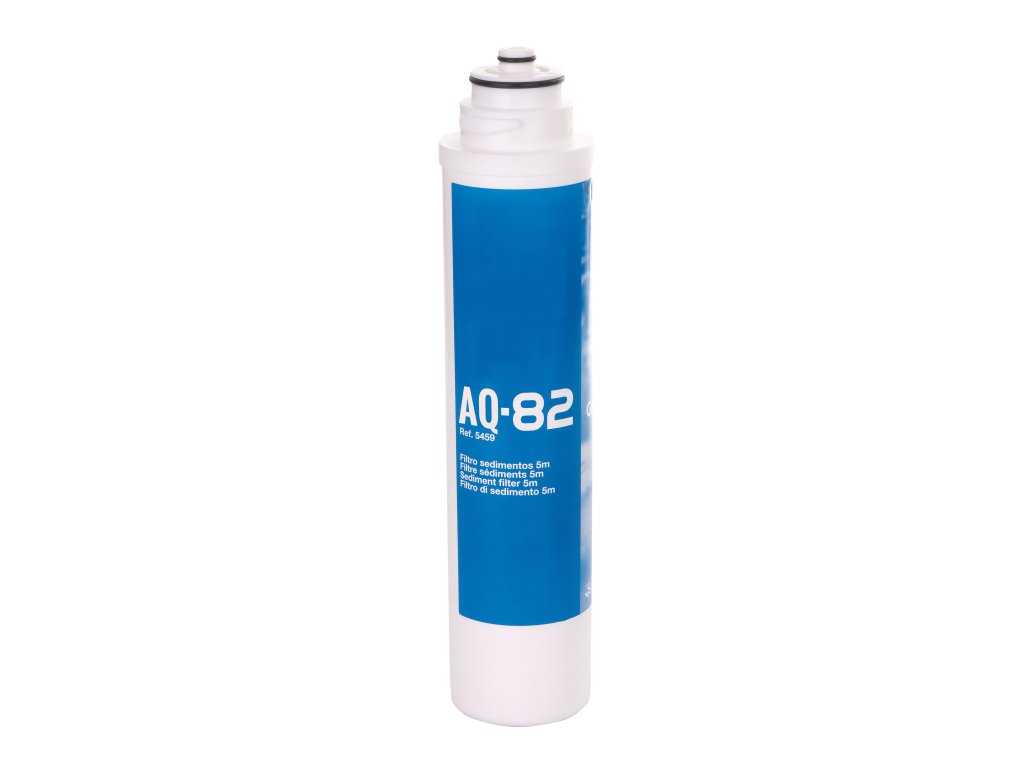

AQ 82 - mechanical filtration cartridge

Product detailed description

Removal of Mechanical Impurities

Filter cartridge that removes all mechanical impurities from the incoming water up to 5 microns in size. This filtration is ideal as a pre-filter for further subsequent filtration or to protect accessories that require clean water without mechanical impurities.

Easy installation and replacement of the filter cartridge via a bayonet system - just turn it 90º and pull it out.

Specifications:

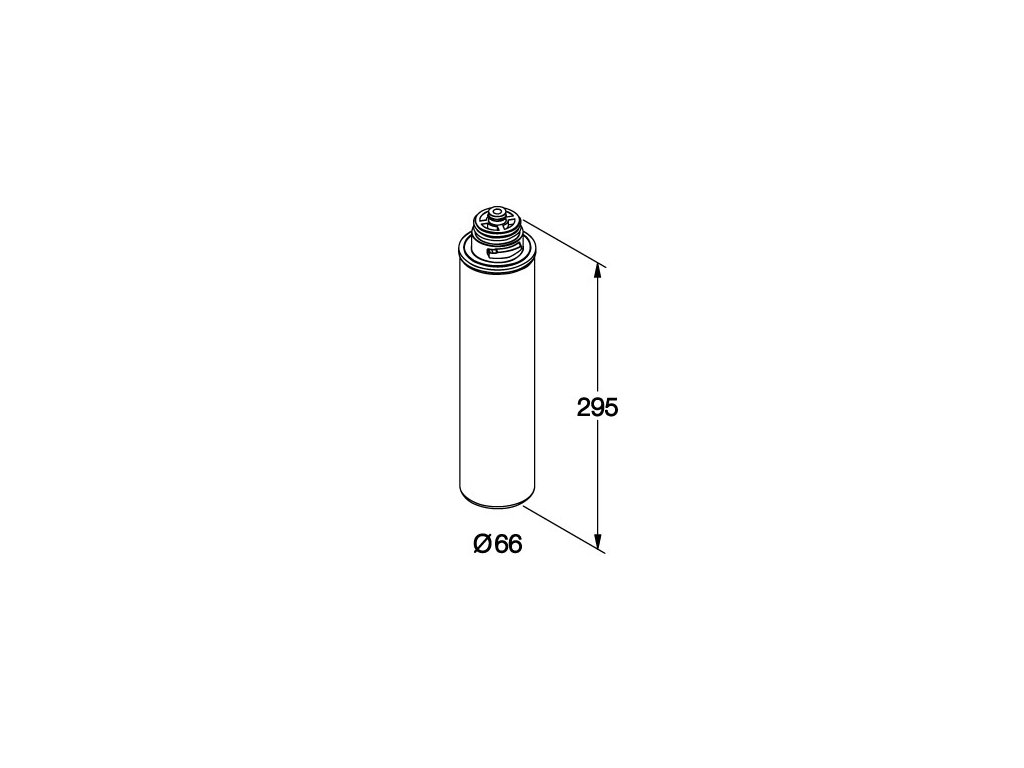

• package size: Φ 66 x 295 mm
• weight: 300 g
• maximum inlet pressure: 8 bar
• minimum inlet pressure: 3 to 5 bar
• filter cartridge lifespan: 11,000 l (6 - 10 months)
• max/min inlet water temperature: 38/2 ºC
• maximum flow rate: 3.78 l/min for maximum filter efficiency
