Compact softener OPC
Code: AQC000399 AQC000407 AQC000408 AQC000601 Choose variantProduct detailed description
New compact fully automatic katex water softeners OPC, featuring modern softening technology and an Italian digital control unit. Everything in one, ideal for apartments, cottages, family homes, and small guesthouses. Simple installation and setup, the highest level of water softening efficiency with adjustable hardness settings. This device serves to remove water hardness and is intended for connection to the water supply in a house for central filtration.
This small "softener" will ensure pleasant soft water without limescale formation, guaranteeing full satisfaction for any water use. No more white spots, clogged showerheads, or the sight of increasing limescale anywhere. OPC will always ensure maximum cleanliness.
Extended warranty of 3 years.
NAME | RECOMMENDED NUMBER OF PERSONS | CONNECTION | FILLING QUANTITY | SALT CONSUMPTION | WATER CONSUMPTION | NOMINAL FLOW | MAXIMUM FLOW | INSTALLATION HEIGHT OF CONNECTIONS | OVERALL DEPTH WITH CONNECTIONS | OVERALL DIMENSIONS |
(kg/1 reg.) | (l/1 reg.) | (m³/h *) | (m³/h **) | mm | (WxHxD) | |||||
OPC 08 | 1 to 2 | 1“ | 8 l | 1 | 40 | 0.5 - 0.6 | 0.8 | 490 | 650 | 320x670x500 |
OPC 15 | 2 to 3 | 1“ | 15 l | 1.8 | 75 | 0.9 - 1.1 | 1.5 | 835 | 650 | 320x1010x500 |
OPC 25 | 4 to 6 | 1“ | 25 l | 3.0 | 125 | 1.5 - 2 | 2.5 | 950 | 650 | 320x1130x500 |
OPC 30 | 4 to 8 | 1“ | 30 l | 3.6 | 150 | 1.8 - 2.2 | 3 | 950 | 650 | 320x1130x500 |
* Nominal flow – flow for continuous filter operation. Filtration efficiency is not reduced and is constant.
** Maximum flow – flow for peak filter operation. Filtration efficiency is not reduced for max. 5 minutes.
After 5 minutes of operation, filtration efficiency very slowly begins to decrease.
- A pre-filter for mechanical impurities must be installed before every softener.
- Close to the filtration unit, a connection to a waste system is necessary (up to a maximum height of 3 m), where sedimented limescale (calcium and magnesium salts) and other impurities are discharged from the filtration.
Technical data:

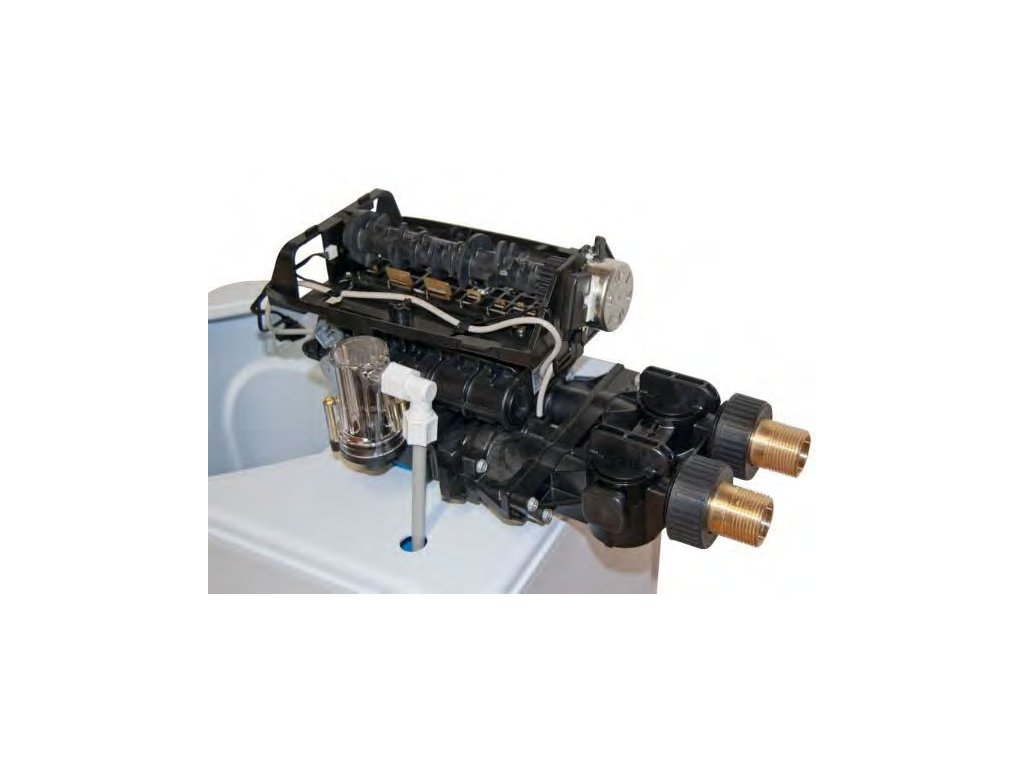

- Control Unit: GE Autotrol LOGIX 255/760 (Italy)
- Head Control: volumetric (capacity)
- Device Programming: fully automatic, computer-controlled
- Filter Fill: ion exchange resin
- Ion Exchange Tank: fiberglass
- Operating Pressure: 1.38 - 8.27 bar
- Inlet and Outlet Connections: brass 1", external thread
- Waste Connection: plastic 1/2", external thread
- Operating Temperatures: 2–38 °C
- Built-in bypass (for adjusting water hardness at the outlet)
- External flange with main bypass
- Built-in water meter
- Built-in flow meter
- Safety overflow
- Electric Voltage: 230 V/50 Hz
- Power Consumption: 5 W
- Cabinet Color: white
The product is certified and intended for contact with drinking water.
Programming the Control Head
If you wish, we can program the filter complete according to the quality of your water. For correct programming, we need the input water values from you - for tap water, the water hardness or its conductivity (conductivity). If you do not know this information, send us your address, and we will find out the water quality in your tap supply. For wells, we need the hardness, iron, and manganese values (if you have exceeded values of iron and manganese).
Transport of the Filtration Device
We recommend sending the device on a pallet to avoid damage during transport. If you are purchasing regenerative salt along with the filtration device, you can add the pallet to your cart together with the salt.
Installation and Service of the Device
Installation and transport will be handled by our own service technicians (we have 14 authorized service technicians throughout the Czech Republic and Slovakia). If interested, we would be happy to prepare a price quote for you. The installation cost depends on the difficulty and the material used (connection hoses, valves, etc.). If you are interested in installation, please inform us in the comments box in the cart ("Add a note for the seller").
We recommend performing service exchanges regularly once a year. The price for a service exchange is 1,990 CZK + travel expenses, which is a flat fee of 590 CZK (990 CZK for Prague and Brno) if the technician's trip is combined with other installations or service en route.
Additional parameters
Category: | Water Softeners |
---|---|
According to the connection: | On the water supply line |
According to the type of filter: | For hard water, For water from a well |
According to the variant of water treatment: | Economic option |
According to usage: | For households |
By type: | Katexové, Multifunctional |
Product type for water treatment: | Water Softeners |
