Dropson EMI - hardness water treatment

Code: 2072/750 2072/800 2072/900 AQC000756 AQC000846 Choose variant
Tip
Not rated
€5 196 €6 596 €9 596 €879,20 €1 319,20 from €879,20 €4 294,21 excl. VAT €5 451,24 excl. VAT €7 930,58 excl. VAT €726,61 excl. VAT €1 090,25 excl. VAT from €726,61 excl. VAT
In stock; available within 1–3 days In stock; available within 1–3 days In stock; available within 1–3 days In stock In stock; available within 1–3 days Choose variant
Flow rate
Chosen variant is not available. Reset selected parameters.

Dropson EMI is an innovative maintenance-free device for eliminating limescale formation with high efficiency, utilizing electromagnetic impulse fields. It is made of stainless steel.

Detailed information

Product detailed description

Dropson EMI is an innovative water treatment against limescale that utilizes electromagnetic pulses. This patented technology ensures high efficacy against the deposition of limescale, primarily due to the calibrated chamber for optimal water flow ratio considering the input hardness. The water is treated in a turbulent environment generated by the whirling in the chamber. The use of quality materials prevents the dampening of magnetic effects.

For preventive water softening

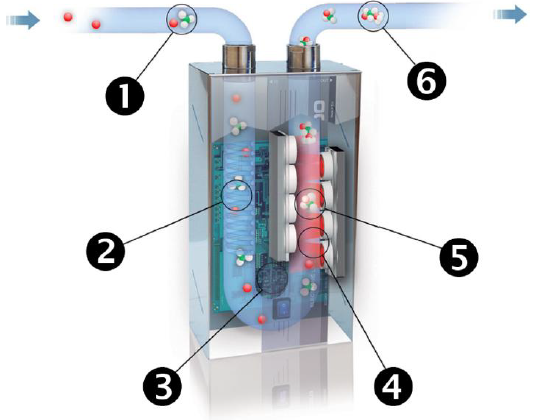

The swirling chamber changes laminar water flow (1) into turbulent flow (2). The electric module (3) controls the magnetic pulse generators (4). These pulses at a specific frequency enter directly into the turbulent water flow (5). The effect of the magnetic pulses and the kinetic energy from the flow cause crystallization between calcium and carbonate ions. These resulting microcrystals cannot settle. They do not settle on any surface as they are already crystallized. They flow through the fittings without settling. (6)

EMI_zmekcovac

The product is certified and designed for contact with drinking water.

Cleaning effect

The electromagnetic pulses disrupt the equilibrium of calcium carbonate in water according to the following equation: Ca(HCO3)2 > CaCO3 + H2CO3

In simple terms - during each crystallization of calcium carbonate, a carbon dioxide molecule is created, which is simultaneously capable of gradually dissolving limescale deposits from the pipes.

Action time

The structure of the crystals created by the magnetic field effects is stable for a limited time. Scientific studies indicate that the crystals break down after 12 days. In practice, this time is approximately 100 hours or 4 days. It is therefore recommended that the device be sized so that at least 60% of the treated water is consumed within 24–48 hours. In other cases, it is advisable to install a recirculation circuit for the treated water.

For the best results, it is important not to exceed the required flow rates. If you need help selecting the right device, please contact us, we will be happy to assist you.

We recommend installing a filter PX 60 for mechanical impurities

Warranty 2 years.

Expected lifespan 10-15 years.

Dropson EMI 2500
  • External threaded connection DN 20 – ¾”
  • Material: stainless steel
  • Weight 4.3 kg
  • Dimensions 295 x 170 x 58 mm
  • Peak flow 2.5 m3/h
  • Input water temperature (max) 40°C
  • Treated water temperature (max) 80°C
  • Maximum pressure 10 bar
For more technical information about EMI 2500 click here.
Dropson EMI 4000
  • External threaded connection DN 26 – 1”
  • Material: stainless steel
  • Weight 7.5 kg
  • Dimensions 390 x 190 x 70 mm
  • Peak flow 4.5 m3/h
  • Input water temperature (max) 40°C
  • Treated water temperature (max) 80°C
  • Maximum pressure 10 bar
For more technical information about EMI 4000 click here.
Dropson EMI 7500
  • External threaded connection DN 32 – 1 ¼”
  • Material: stainless steel
  • Weight 10 kg
  • Dimensions 490 x 190 x 85 mm
  • Peak flow 6.5 m3/h
  • Input water temperature (max) 40°C
  • Treated water temperature (max) 80°C
  • Maximum pressure 10 bar
For more technical information about EMI 7500 click here.
Dropson EMI 8000
  • External threaded connection DN 32 – 1 ¼”
  • Material: stainless steel
  • Weight 15 kg
  • Dimensions 385 x 240 x 145 mm
  • Peak flow 9 m3/h
  • Input water temperature (max) 40°C
  • Treated water temperature (max) 80°C
  • Maximum pressure 10 bar
For more technical information about EMI 8000 click here.
Dropson EMI 9000
  • External threaded connection DN 40 – 1” ¼”
  • Material: stainless steel
  • Weight 19 kg
  • Dimensions 505 x 250 x 145 mm
  • Peak flow 12 m3/h
  • Input water temperature (max) 40°C
  • Treated water temperature (max) 80°C
  • Maximum pressure 10 bar
For more technical information about EMI 9000 click here.



Additional parameters

Category: Hard water filters
According to the type of filter: For hard water
According to the variant of water treatment: Alternative option
According to usage: For households
By type: Alternative, Electromagnetic
