ECOMIX P filter cartridge, 1 l

 Properties and Functions:

1. Water Softening – effectively reduces water hardness
2. Iron Removal – eliminates iron content in water
3. Manganese Removal – removes manganese, which often causes stains

Main Advantages:

1. One device for comprehensive filtration – replaces the need for two separate devices
2. High efficiency – effectively removes iron, manganese, and organic substances
3. Minimal maintenance requirements – designed for standard water treatment devices
4. Stable performance – independent of pH values, anion composition, organic matter content, and chlorine
5. Proven technology – decades of commercial use

Composition and Technology:

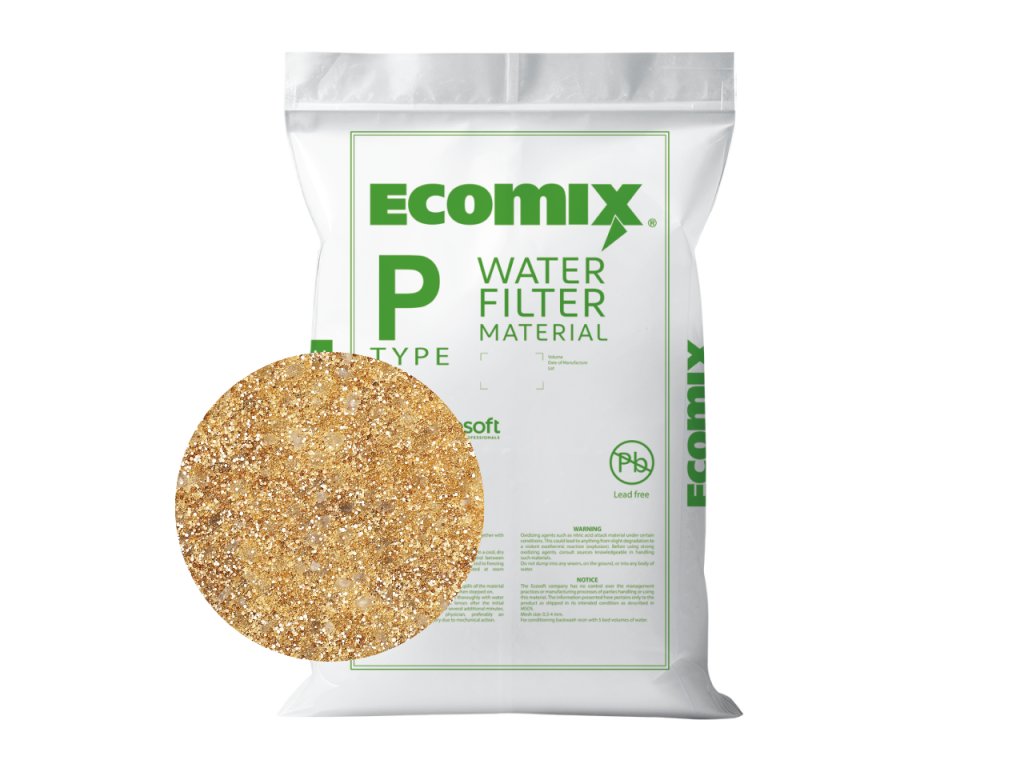

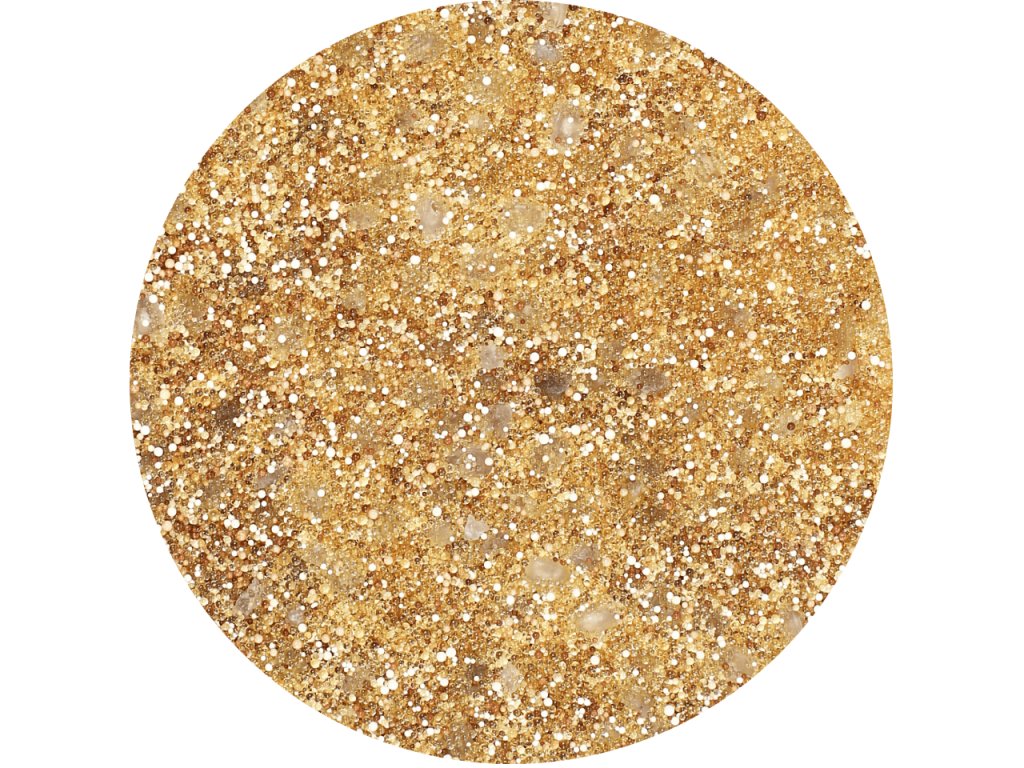

Ecomix P is a mixture of five special components of natural and synthetic materials, which operate on the principles of ion exchange and adsorption. When the filtration unit is filled with water, the individual components are layered into five filtration layers, ensuring reliable and stable filtration efficiency.

Regeneration:

The regeneration of the filtration material occurs automatically using a salt solution. The process includes backwashing the material, salting (regeneration), rinsing, and filtering the material for further use. Devices are typically designed for regeneration to occur approximately once a week, depending on water hardness and consumption.

Technical Data: Flow rates: Operating: 20 - 25 m/h Backwash: 10 - 15 m/h Regeneration: 3 - 5 m/h Salt consumption for regeneration: 100 g/l of filling Water consumption: 4 - 6 l/l of filling Water temperature: 4 - 40 °C Optimal bed height: 800 mm Free content: 40 % or more Input Water Requirements: Total hardness: up to 7.5 mmol/l (42 dH) TDS: max. 4000 mg/l Iron: up to 15 mg/l Manganese: up to 3 mg/l Total mineralization: up to 4000 mg/l COD Mn: up to 3 mg/l Ammonium ions: up to 4 mg/l pH value: 5 - 9
