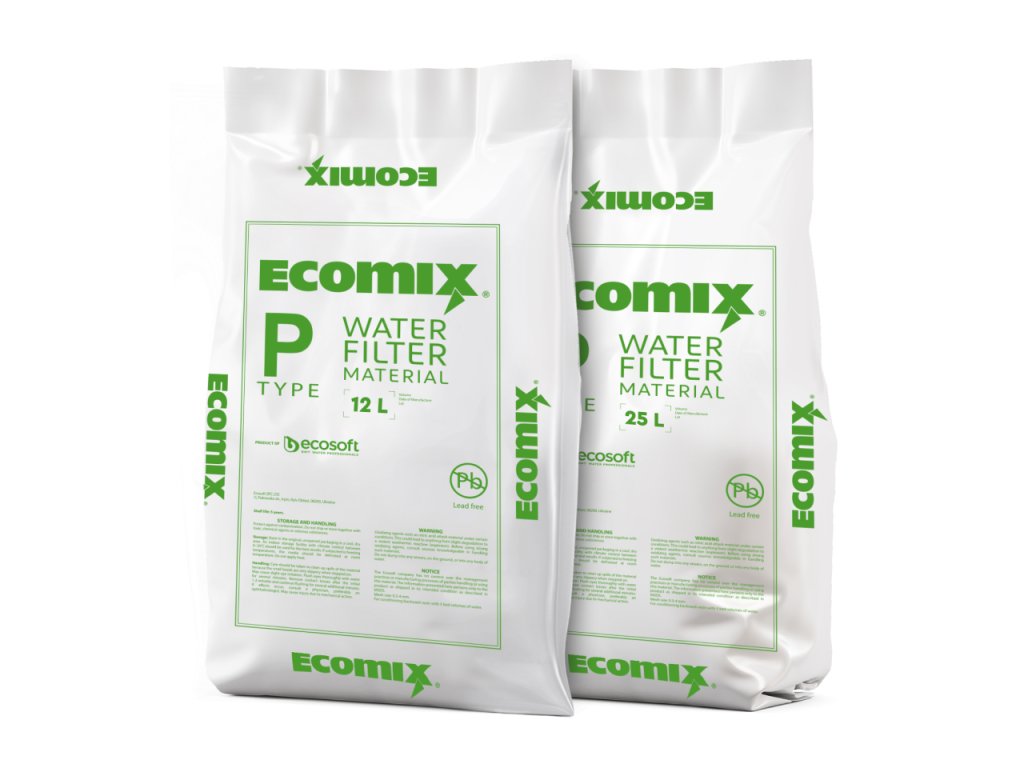

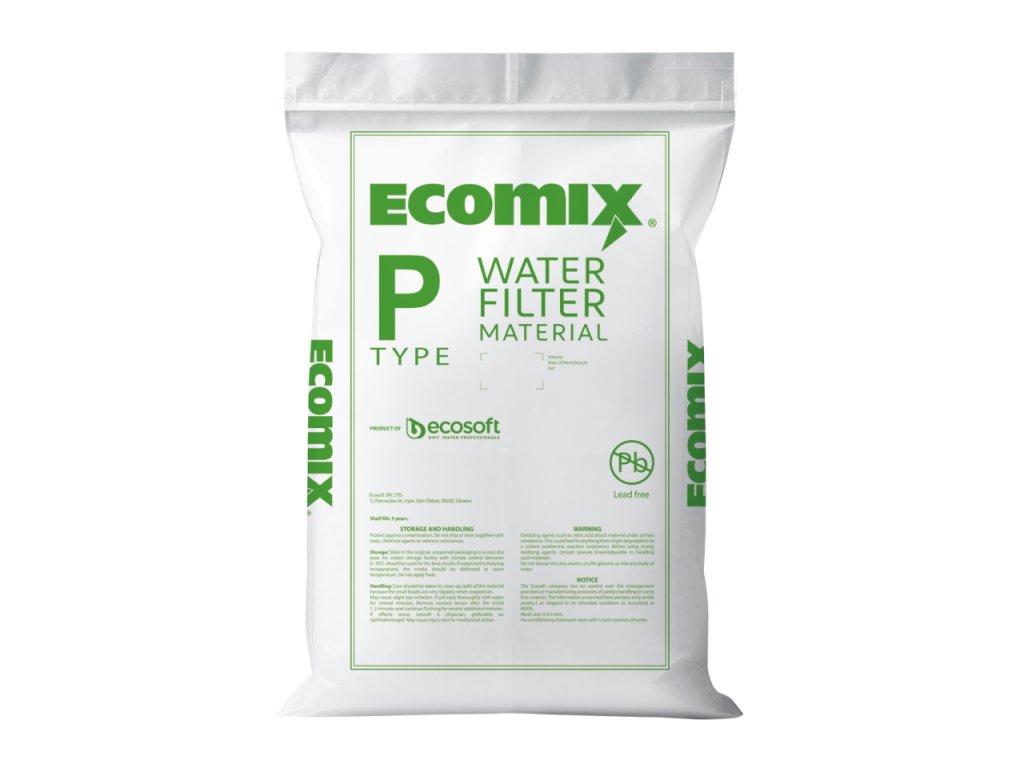

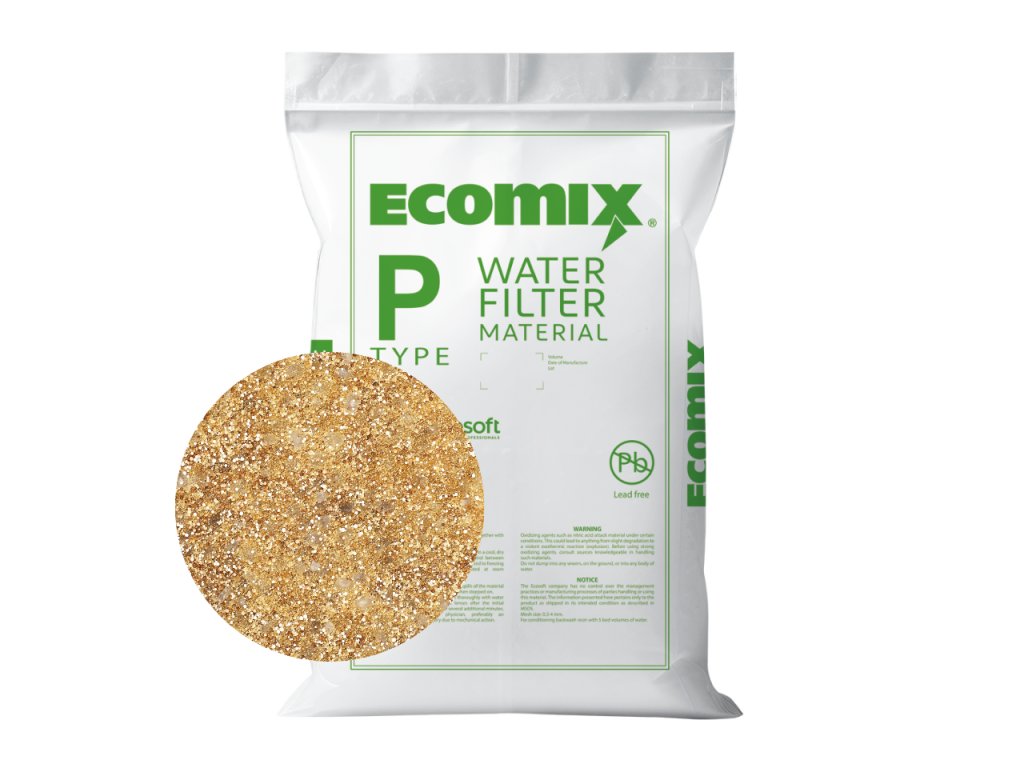

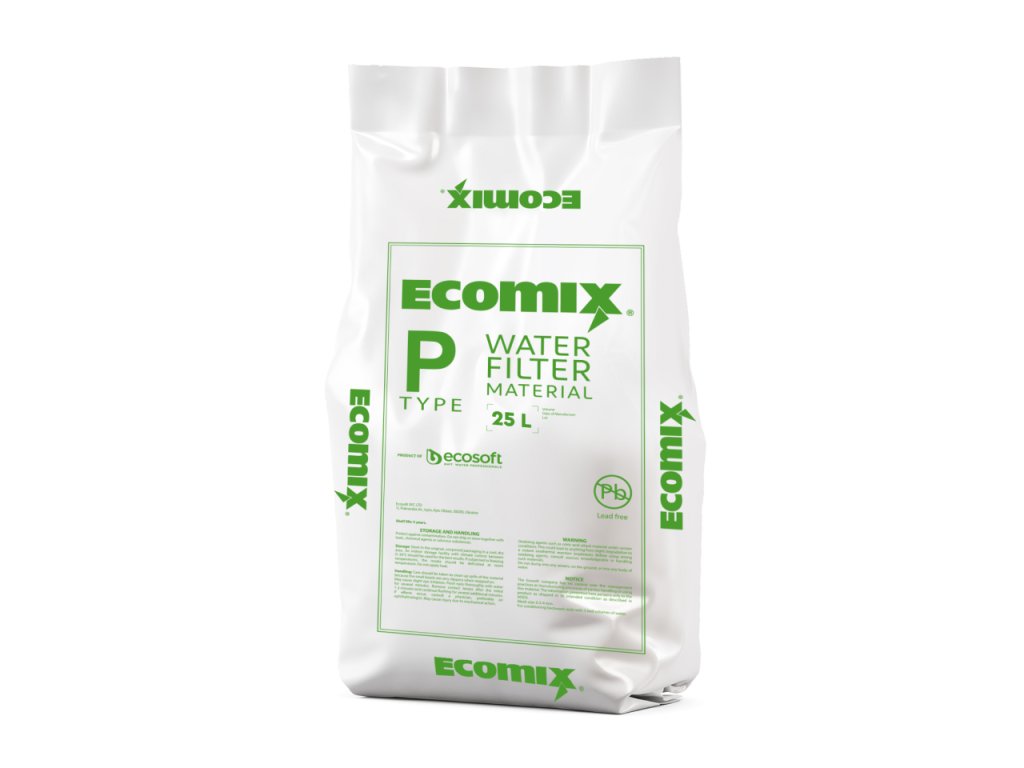

ECOMIX P Filter Cartridge, 12 l

 Properties and Functions:

1. Water softening – effectively reduces water hardness
2. Iron removal – eliminates iron content in water
3. Manganese removal – removes manganese, which often causes discoloration

Main Advantages:

1. One device for comprehensive filtration – replaces the need for two separate devices
2. High efficiency – effectively removes iron, manganese, and organic substances
3. Minimal maintenance requirements – designed for standard water treatment systems
4. Stable performance – independent of pH value, anion composition of water, organic content, and chlorine levels
5. Proven technology – decades of commercial use

Composition and Technology:

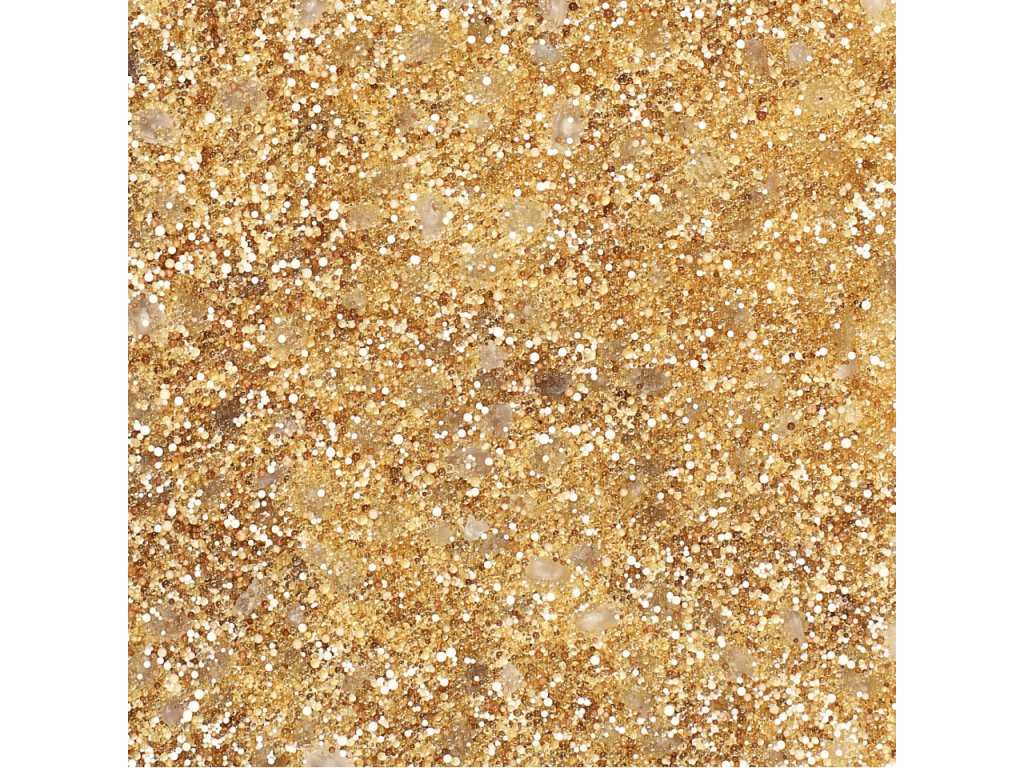

Ecomix P is a mixture of five special components of natural and synthetic materials, which operate on the principle of ion exchange and adsorption. When the filtration unit is filled with water, the individual components stratify into five filtration layers, ensuring reliable and stable filtration efficiency.

Regeneration:

The regeneration of the filter medium occurs automatically using a saline solution. The process includes backwashing the medium, salting (regeneration), rinsing, and filtering the medium for further use. The devices are usually designed for regeneration to take place approximately once a week, depending on water hardness and consumption.

Technical Specifications: Flow rates: Operating: 20 - 25 m/h Backwash: 10 - 15 m/h Regeneration: 3 - 5 m/h Salt consumption for regeneration: 100 g/l of medium Water consumption: 4 - 6 l/l of medium Water temperature: 4 - 40 °C Optimal bed height: 800 mm Free volume: 40 % or more Requirements for inlet water: Total hardness: up to 7.5 mmol/l (42 dH) TDS: max. 4000 mg/l Iron: up to 15 mg/l Manganese: up to 3 mg/l Total mineralization: up to 4000 mg/l COD Mn: up to 3 mg/l Ammonium ions: up to 4 mg/l pH value: 5 - 9
