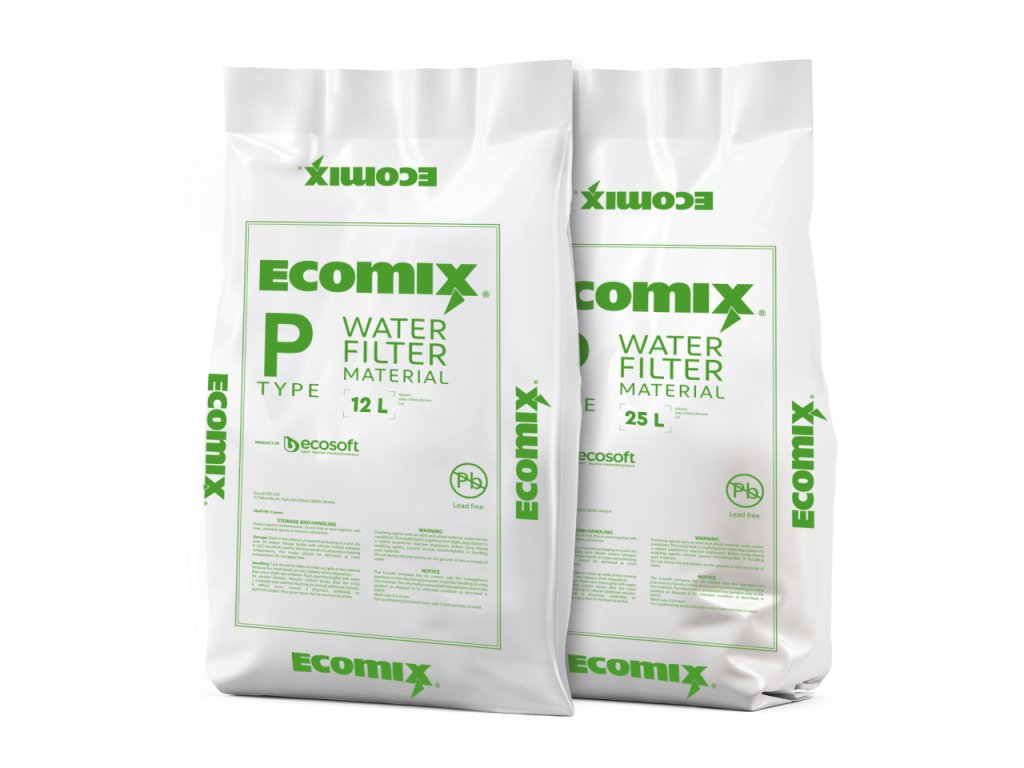

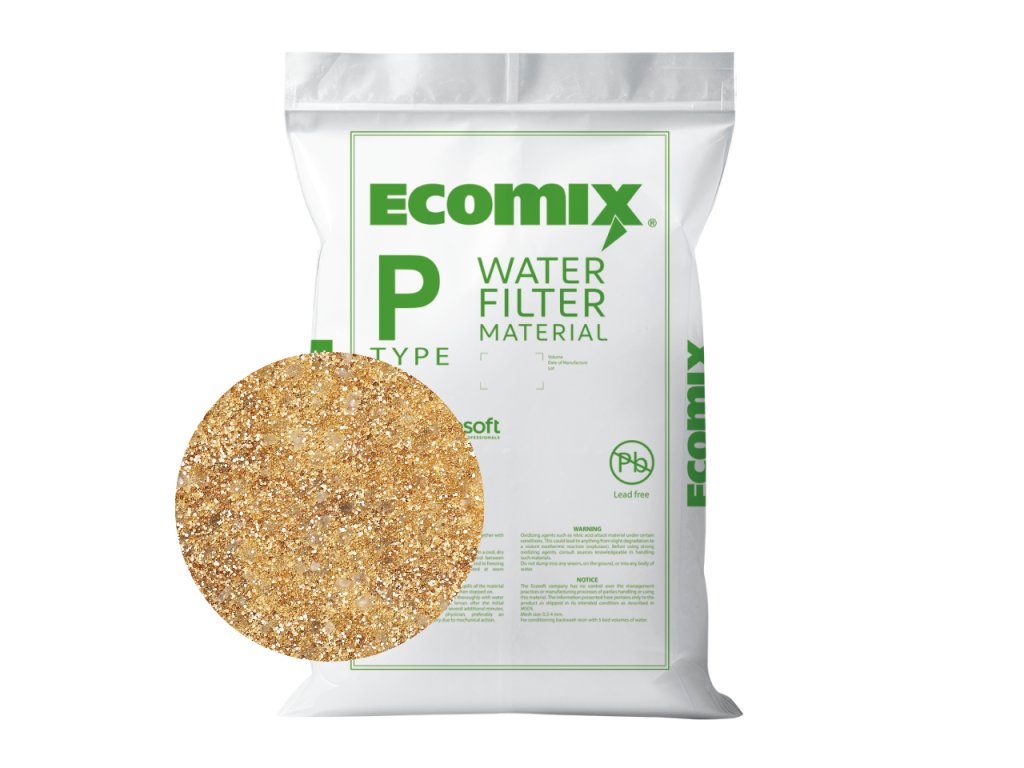

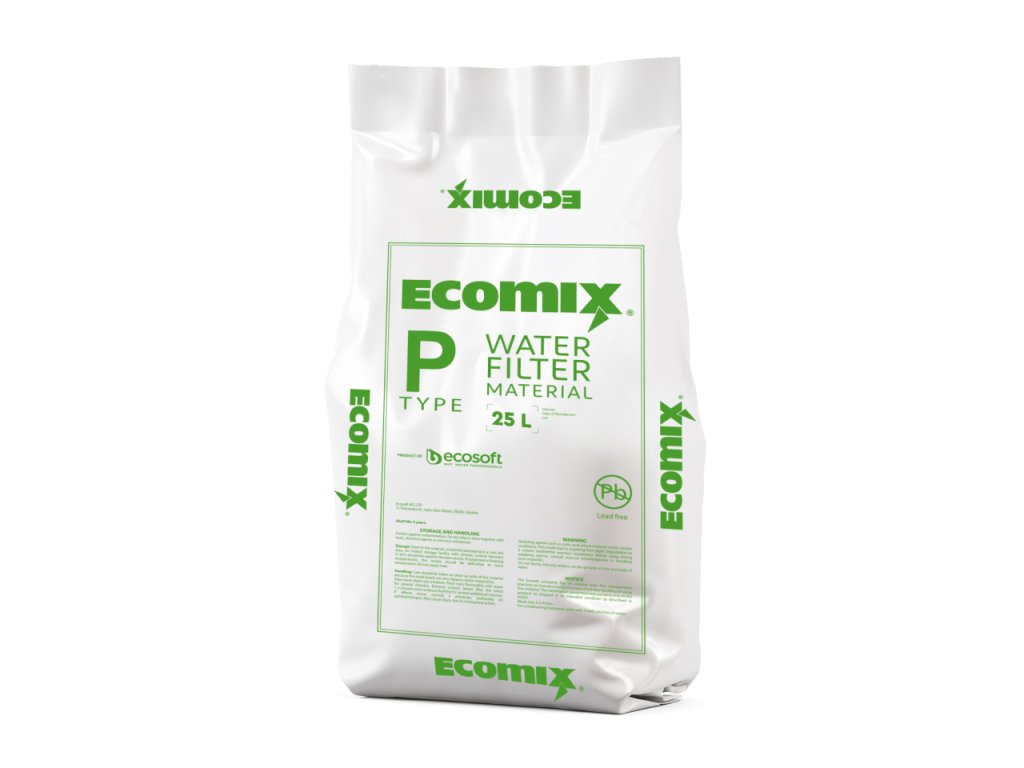

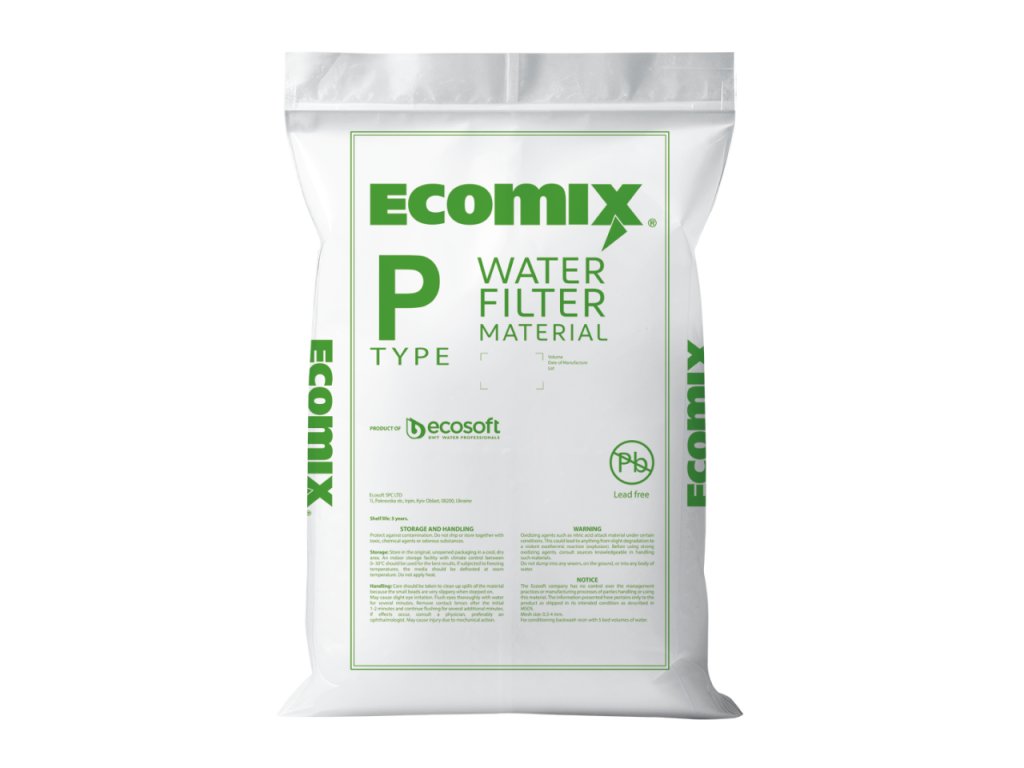

ECOMIX P filter cartridge, 25 l

 Features and functions:

1. Water softening – effectively reduces water hardness
2. Iron removal – eliminates iron content in the water
3. Manganese removal – removes manganese, which often causes colored stains

Main advantages:

1. One device for comprehensive filtration – replaces the need for two separate devices
2. High efficiency – effectively removes iron, manganese, and organic substances
3. Minimal maintenance requirements – designed for standard water treatment systems
4. Stable performance – independent of pH value, anionic composition of water, organic content, and chlorine
5. Proven technology – decades of commercial use

Composition and technology:

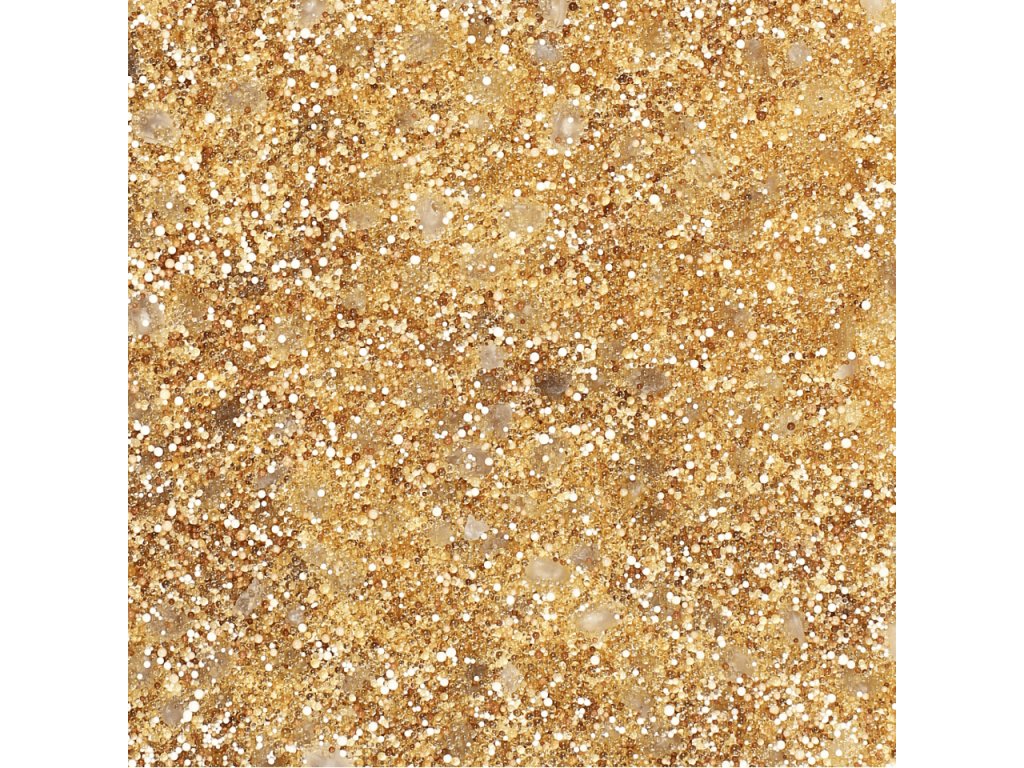

Ecomix P is a blend of five special components made of natural and synthetic materials that operate on the principle of ion exchange and adsorption. When filling the filtration unit with water, the individual components layer into five filtration layers, ensuring reliable and stable filtration efficiency.

Regeneration:

Regeneration of the filtration material occurs automatically using a brine solution. The process includes backwashing the material, salting (regeneration), rinsing, and filtering the material for further use. Devices are usually designed so that regeneration takes place approximately once a week, depending on water hardness and consumption.

Technical data: Flow rates: Operating: 20 - 25 m/h Backwash: 10 - 15 m/h Regeneration: 3 - 5 m/h Salt consumption for regeneration: 100 g/l of media Water consumption: 4 - 6 l/l of media Water temperature: 4 - 40 °C Optimal bed height: 800 mm Free content: 40% or more Input water requirements: Total hardness: up to 7.5 mmol/l (42 dH) TDS: max. 4000 mg/l Iron: up to 15 mg/l Manganese: up to 3 mg/l Total mineralization: up to 4000 mg/l COD Mn: up to 3 mg/l Ammonium ions: up to 4 mg/l pH value: 5 - 9
