EMEC dosing pump head
Code: 5566/PVD2 AQC0001794 Choose variantRelated products
Product detailed description

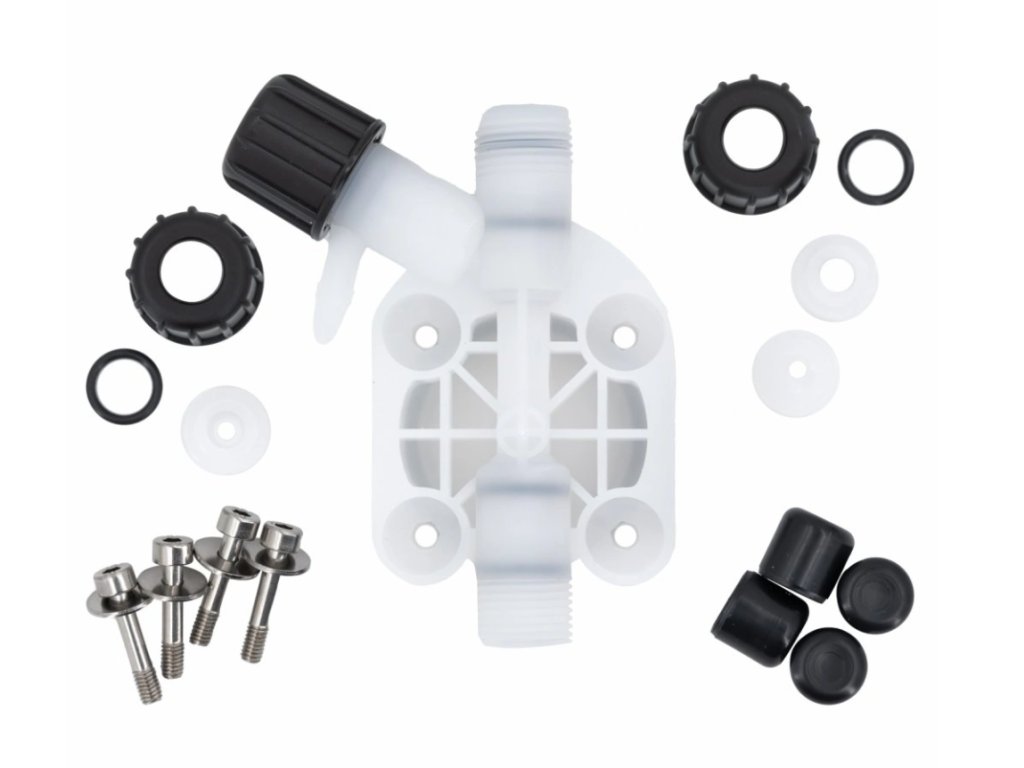

Replacement head made of PVDF for dosing pumps EMEC VCO and EMEC VMS MF. Delivered including suction/injection valves, all seals, stainless steel screws, washers, and nuts with hose connections.
The material of the head is PVDF (polyvinylidene fluoride) - a highly non-reactive thermoplastic polymer that provides the highest resistance to acids and solvents.
The material of the seal is by choice Viton or EPDM. Viton ensures high resistance to oils, minerals, solvents, acids, and other chemicals. EPDM is characterized by high resistance to aging, heat, ozone, and chemicals and oils.
Technical parameters:
- Type of head: K
- Material of head: PVDF
- Material of backflow valve balls: ceramic
- Material of seal: FPM (Viton) or EPDM
- Dimension of connecting hoses: 4x6mm
Compatibility:
- Dosing pump EMEC VCO
- Dosing pump EMEC VMS MF
Additional parameters
Category: | Accessories for water disinfection |
---|---|
By type: | For dosing pumps |
