Hydraulic Water Softener OPC ERGO

Code: 5268/OPC 5268/OPC2 Choose variant
Not rated
€679,20 €759,20 from €679,20 €561,32 excl. VAT €627,44 excl. VAT from €561,32 excl. VAT
In stock at the manufacturer In stock at the manufacturer Choose variant
Type
Chosen variant is not available. Reset selected parameters.
Pallet for oversized shipments ?
Programming the control head

Automatic Hydraulic Water Softener OPC ERGOWITHOUT THE NEED FOR ELECTRICITY. High flow rate of 1.8 – 2.1 m3/h, quick regeneration in 15 minutes, and very low consumption of regeneration salt at only 0.3 kg. Suitable for households and other commercial spaces. Available in two types of units depending on the amount of filter media - OPC 8 ERGO and 11 ERGO.

Detailed information

Product detailed description

Compact hydraulic water softener OPC 8 ERGO and OPC 11 ERGO for removing water hardness. This fully automatic device does not require an electricity supply thanks to the ERGO valve, which operates on a hydraulic principle and the process control is determined only by the flow of water. It achieves high water flow rates of 1.8 – 2.1 m3/h.

The DIRECT ACCESS system facilitates programming and ensures proper commissioning. ERGO also includes the revolutionary SAVING REGEN system, which has very low water (25 l) and regeneration salt (0.36 kg) consumption during regeneration. Additionally, regeneration is unusually fast – taking only 15 minutes.

ERGO water softeners are designed for use in households,small businesses and halls or smaller social facilities. With their compact dimensions, they take up minimal space

Water hardness causes deposits of limescale on appliances. By using softened water (instead of hard water), you extend the lifespan of appliances (e.g. dishwashers, washing machines) and reduce maintenance costs. Since chemical removal of limescale is not needed, it is a gentle and eco-friendly solution.

Thanks to the installed bypass, it is possible to extract water of the required hardness. Also included is a mixing valve for water hardness.

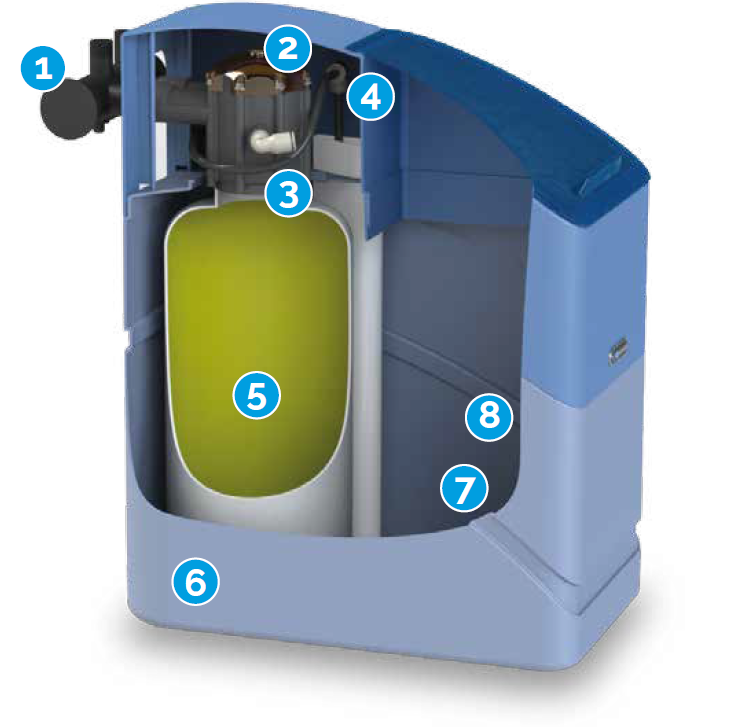

1. SAVING REGEN SYSTEM - Low consumption of water and salt, standard bypass for residual hardness

2. DIRECT ACCESS SYSTEM - easy commissioning

3. SPEED REGEN - very fast regeneration (15 minutes)

4. Float monitoring brine level

5. High flow even with small dimensions

6. High-quality cabinet made of durable plastic

7. Salt tablets

8. Salt block



Technical specifications:
Device type OPC 8 ERGO 11 ERGO
Filling quantity 7.4 l 10.5 l
Water flow 1.8 m3/h 2.1 m3/h
Maximum water flow 2.1 m3/h 2.1 m3/h
Salt consumption per regeneration 0.36 kg 0.36 kg
Water consumption per regeneration 25 l 25 l
Maximum water hardness 60 ºHF 73 ºHF
Duration of one regeneration 15 minutes 15 minutes
Temperature protection system Frost protection Frost protection
Working temperature 1.7 - 45ºC 1.7 - 45ºC
Working pressure 1.7 - 8.6 bar 1.7 - 8.6 bar

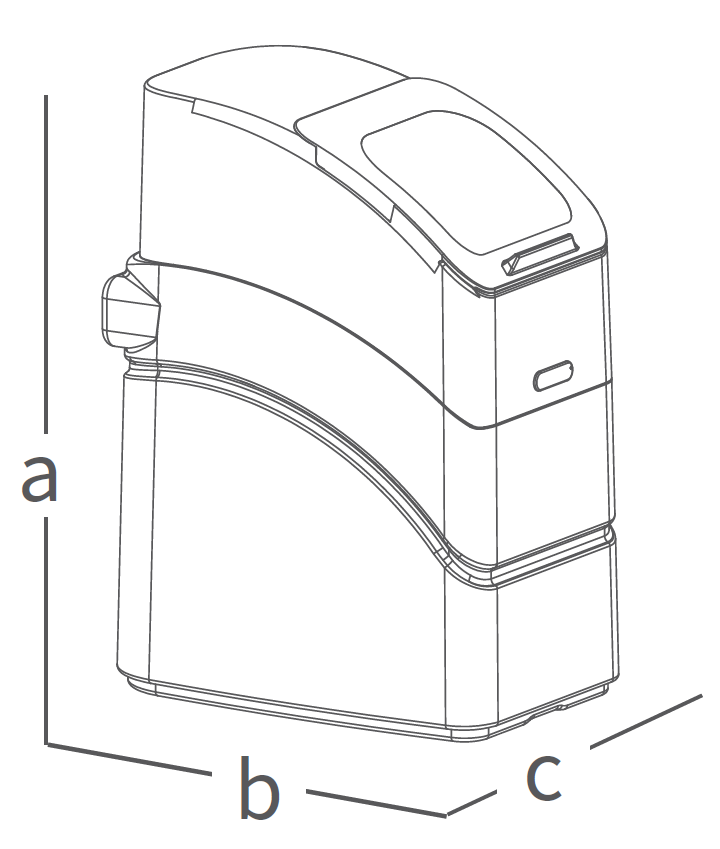

Dimensions (a x b x c) 508 x 500 x 293 608 x 500 x 297

The product is certified and designed for contact with drinking water.

Installation and service of the device

Installation and transport will be provided by our own service technicians (we have 14 authorized service technicians throughout the Czech Republic and Slovakia). If interested, we will gladly provide you with a price quote. The installation cost depends on the difficulty and material used (connecting hoses, valves, etc.). If you are interested in installation, please let us know in the notes in your cart ("Enter a note for the seller").

Service exchanges are recommended to be performed regularly once a year. The price of the service exchange is 1,990 CZK + travel costs, which is paid flat at 590 CZK (for Prague and Brno 990 CZK) if the technician's trip is associated with other installations or services along the way.

Additional parameters

Category: Water Softeners
According to the type of filter: For hard water, For water from a well
According to the variant of water treatment: Economic option
According to usage: For households
Product type for water treatment: Water Softeners
