Product detailed description
Mechanical washable water filter PX ECO with brass head, locking nut, sludge valve and washable all-stainless steel filter cartridge is designed for effective water filtration in households as well as for technical and industrial applications. It withstands even extreme conditions and is suitable for hot water treatment (up to 60 °C) at high pressure (up to 10 bar).
It is a simple filtration system that removes all mechanical impurities from the inlet water up to 60 microns in size. This filtration is ideal as a pre-filter for further filtration or as protection for boilers, washing machines, water pumps and other devices that require clean water free from mechanical impurities (sand, dirt, clay, hair, and other insoluble particles). It provides greater comfort and peace of mind when using water for any purpose.
It is recommended to flush the filter cartridge once every 3 months to ensure optimal function.
The design of this model consists of three main parts (head-nut-tube), which ensures easy installation and reliable operation. The filter head is made of natural brass and the tube is made of PET-G, which ensures long life and reliability. It is equipped with two air release valves.
The unique feature of this model is the drain sludge valve, which allows for quick and complete removal of accumulated sediments. The teardrop-shaped tube effectively directs all impurities away, while the grid at the bottom creates a collection tank that protects the filter cartridge from being contaminated by floating particles.
Package contents:
- Filter tube PX ECO with brass head and sludge valve
- Washable all-stainless steel cartridge ECO 60 microns
Key features:
- Water treatment at high pressure up to 10 bar
- Sludge valve for quick and complete removal of accumulated sediments
- Internal centralizer ensures correct orientation of the filter cartridge
- Reduced pressure loss thanks to the special filter design
- High versatility, compatible with DOE, BIG, COD3 filter cartridges.
- Air release valves suitable for manometer installation
|
Technical specifications:
|

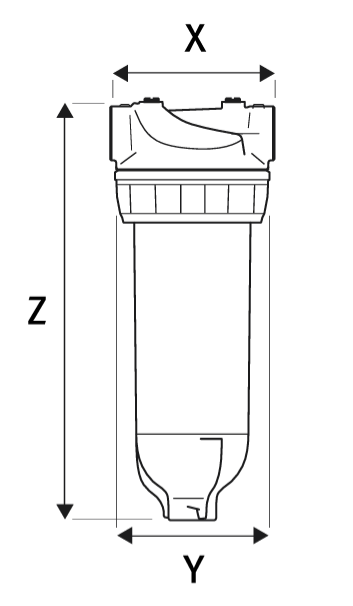

Dimensions (L×W×H):
|
Additional parameters
| According to the connection: | On the water supply line |
|---|---|
| According to the type of filter: | For mechanical impurities, For hot water |
