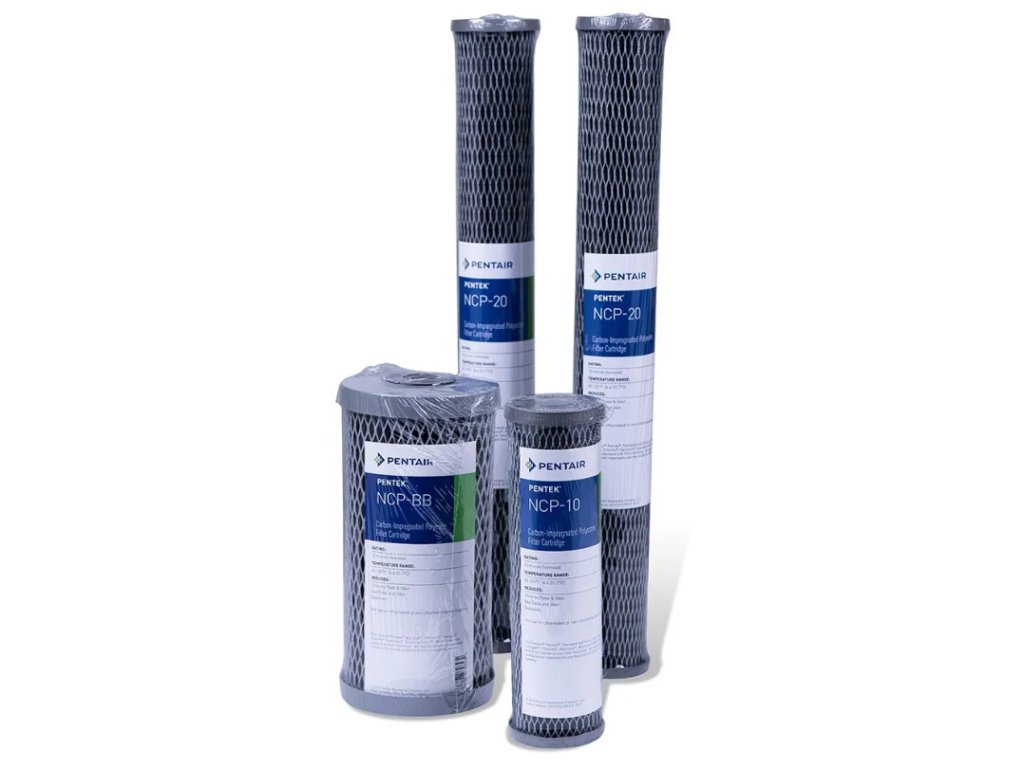

Mechanical filter cartridge NCP 20“ SL

Product detailed description

Leaf filter cartridge impregnated with carbon with filtration fineness of 10 microns for removal of mechanical impurities from water. It is suitable for use with 20" SL type filters or with AQ TUBE filter 20“.

These special cartridges are made of polyester, which is impregnated with activated carbon. Therefore, they are multifunctional filter cartridges that combine mechanical and carbon filter elements in one cartridge. Due to the use of synthetic materials (instead of filter paper), these cartridges are also resistant to bacteriological contamination.

They remove mechanical particles (up to 10 microns) from water, as well as unpleasant odors, tastes, and cloudiness. The construction of the filter cartridge is leaf-shaped. The folds of the filter material provide greater surface area for the accumulation of mechanical impurities. This significantly increases the lifespan of the filter cartridge compared to standard mechanical cartridges.

NCP 20“ SL filter cartridges are designed for contact with drinking water in households, industry, and other places where a cartridge with good efficiency (up to 10 microns), large capacity, and low pressure loss is required.

Due to their ability to remove not only mechanical impurities but also turbidity and color, they are suitable for use in closed circuits, such as for cooling, or as pre-filtration for reverse osmosis, nanofiltration, and ultrafiltration systems.

Technical parameters:

The product is certified and suitable for contact with drinking water.

• Filter material: polyester impregnated with activated carbon
• Length of the cartridge: 20"
• Size: SL
• Micron rating: 10 mcr
• Dimensions: 508 x 67 mm (20“ x 2.5“)
• Type of filter cartridge: Mechanical + carbon
• Inner diameter: 28 mm
• Caps: vinyl plastisol
• Max. operating pressure: 8 bar
• Max. pressure difference: 0.8 bar
• Operating temperatures:  4.4 - 51 °C
• Cartridge efficiency: up to 95 %
