Mechanical filter cartridge SWP 20“ SL

Code: AQC0001702 5356/5 5356/1 AQC0001675 Choose variant
Not rated
€6,36 €6,60 €6,60 €6,36 from €6,36 €5,26 excl. VAT €5,45 excl. VAT €5,45 excl. VAT €5,26 excl. VAT from €5,26 excl. VAT
In stock In stock; available within 1–3 days In stock; available within 1–3 days In stock Choose variant
Filtration fineness
Chosen variant is not available. Reset selected parameters.

Polypropylene mechanical insert with a filtration fineness of 1, 5, 10, or 25 microns for 20" SL-type filters.

Detailed information

Product detailed description

Replacement filter cartridge for removal of mechanical impurities from water. Available in filter cartridge variants according to the filtration fineness 1, 5, 10, or 25 microns. It is suitable for use with 20" SL type filters or with AQ TUBE filter 20“.

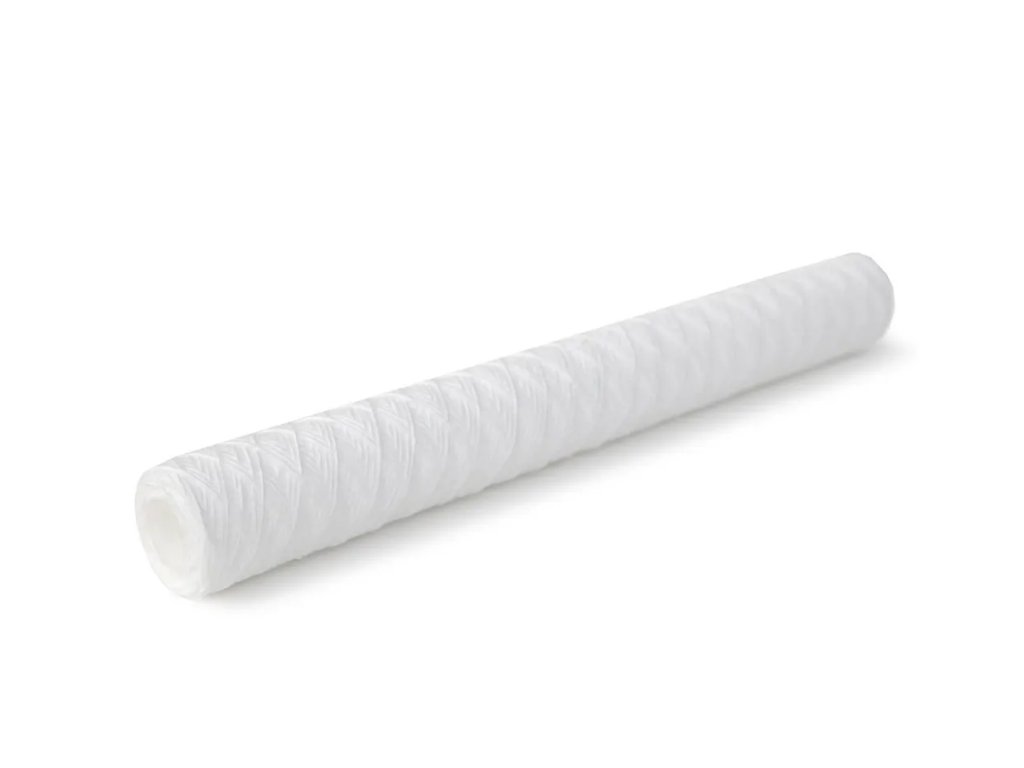

The filter cartridge is made from 100% polypropylene yarn, which is wound around a hard plastic core. The porosity of the cartridge ensures high resistance to bacteria and viruses. Effective filtration ensures removal of mechanical impurities from water: sand, soil, clay, hair, and other undissolved particles

These filter cartridges are used for depth filtration of mechanical impurities, meaning that particles are captured throughout the entire depth of the filter material, not just on the surface of the cartridge. This increases the overall capacity of the cartridge compared to surface filtration.

Unlike standard polypropylene cartridges, these cartridges have lower pressure loss and longer lifespan. They are thus recommended for applications with greater mechanical contamination of the inlet water. They are also suitable for hot water up to a temperature of 82 °C. They are therefore an ideal choice for use in households as well as commercial and industrial applications.

Technical parameters:

The product is certified and intended for contact with drinking water.

  • Material: 100% polypropylene
  • Cartridge length: 20"
  • Size: SL
  • Micron rating: 1 / 5 / 10 / 25 mic
  • Dimensions: 511 x 72 mm (20“ x 2.5“)
  • Max. operating pressure: 8 bar
  • Max. pressure difference: 0.8 bar
  • Operating temperatures:  4 - 82 °C
  • Filter efficiency: up to 98 %

Additional parameters

Category: Accessories for water filters
According to the type of filter: Accessories
According to type and use: Filtration cartridges
Filtration cartridges and refills: Mechanical filters
