Mechanical Water Filter PX 1 ECO

Code: AQCSET1044 AQCSET1050 Choose variant
Not rated
€23,60 €19,50 excl. VAT
In stock In stock Choose variant
Connection
Chosen variant is not available. Reset selected parameters.

PX 1 ECO Water Filter removes mechanical impurities from water up to 1 micron in size. Designed for effective water filtration in households and commercial operations. Size 9“ ¾. Connection ¾“ or 1“.

Detailed information

Product detailed description

Water filter PX 1 ECO with a screw nut is designed for effective water filtration in households and commercial operationsIt is a simple filtration system that removes all mechanical impurities from the incoming water up to 1 micron in size. This filtration is ideal as a pre-filter for further filtration or to protect accessories requiring clean water free from mechanical impurities (sand, soil, clay, hair, and other insoluble particles). It ensures greater comfort and confidence when using water for any purpose.

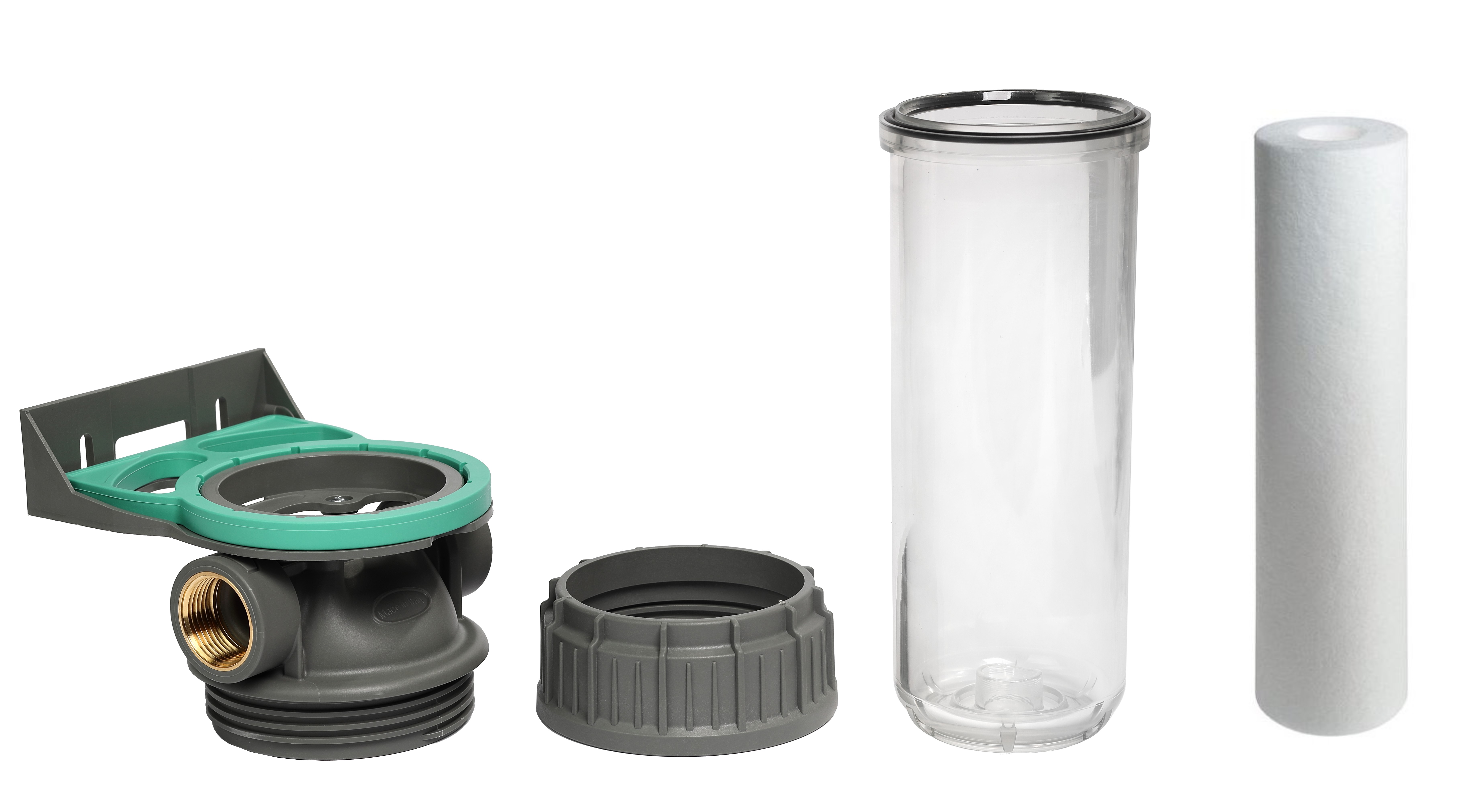

The design of this model consists of three parts (head-nut-tube), ensuring easy installation and reliable operation. The tube is made from durable PET material, which guarantees long life and reliability.

The tube is equipped with a plastic air vent valve and a 2 mm band on the tube that helps properly center the head for easier installation and better pressure resistance. The star-shaped design of the head minimizes pressure losses. The smart placement of the key in the holder ensures that it won't get lost. This model is compatible with various types of filter cartridges (DOE, BIG, COD3).

Pack contents:

  • PX ECO filter tube with a screw nut
  • Mechanical filter cartridge 1 micron

Key features:

  • Removes mechanical impurities from water up to 1 µm
  • Reduced pressure loss due to the star-shaped design of the head
  • Smart key placement in the holder prevents loss
  • 2 mm band on the tube for easy installation and better pressure resistance

Technical specifications:

  • Filtration fineness: 1 micron
  • Size: 9“ ¾
  • Connection: ¾“ or 1“
  • Materials: tube - polyethylene (PET), head - polypropylene (PP) with brass connection units
  • Fastening: threaded
  • O-ring: EPDM
  • Maximum working pressure: 8 bars
  • Maximum working temperature: from 5 °C to 50 °C
  • Mounting: horizontal
  • Connection: threaded connection in inches

The product is certified and intended for contact with drinking water.

Dimensions (L×W×H):

  • 3/4" - 29.6 x 12.5 x 11.1 cm
  • 1" - 30.1 x 12.5 x 11.1 cm

Additional parameters

Category: Filters for mechanical impurities
According to the connection: On the water supply line
According to the type of filter: For mechanical impurities
