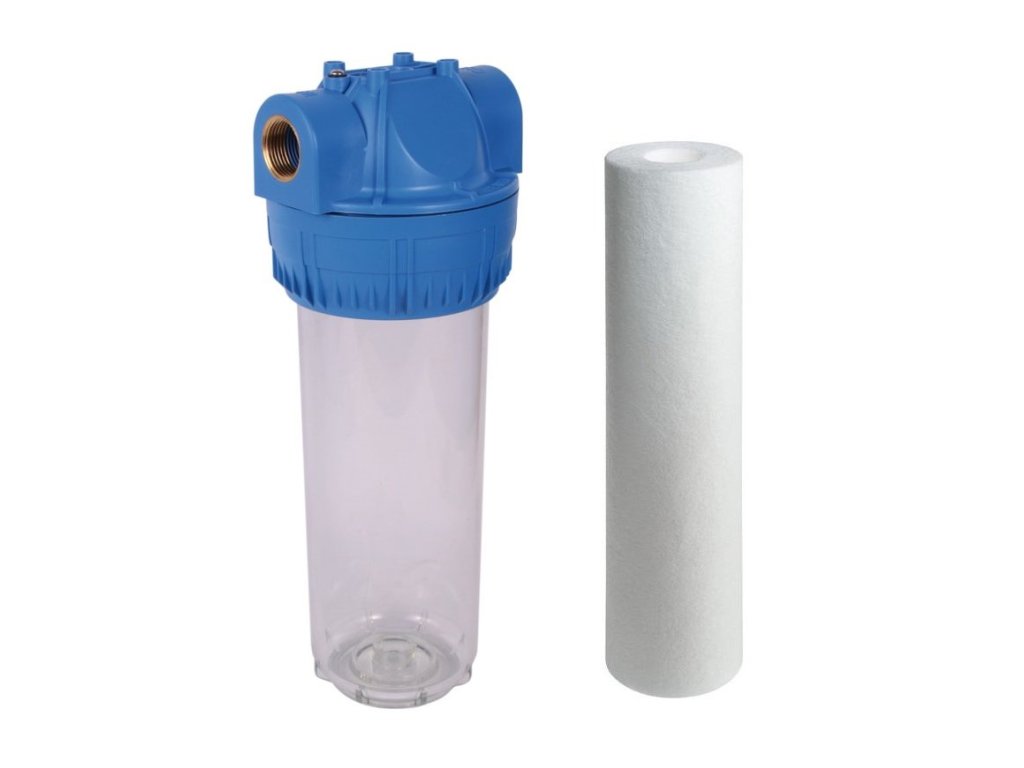

Mechanical water filter PX 20

Product detailed description

Simple filtration that removes all mechanical impurities from the incoming water up to 20 microns. This filter is ideal as a pre-filter for subsequent filtration or to protect accessories that require clean water free from mechanical impurities like sand, dirt, clay, hair, and other insoluble particles. It provides greater comfort and assurance when using water for any purpose.

Specifications:

• size 10"
• dimensions: filter height without bracket 315 mm, height with bracket 355 mm, filter diameter 110 mm, mounting hole distance 120 mm (connection 1“, 3/4“)
• maximum working pressure: 8 bar
• filter cartridge lifespan: approx. 12,000 l (6 - 10 months)
• min/max inlet water temperature: 0ºC to 40ºC
• Maximum flow rate (at 2 bar):    1" - 105.6 l/min
                                                 3/4" - 108.5 l/min

You should know:

The product is certified and intended for contact with drinking water.

The filter is compatible with all mechanical and washable cartridges displayed in the related products below.

The package includes:

• tube with 20 micron cartridge
• wrench for tightening the tube and wall mount
• instructions

Installation of the device is not included in the price. We can arrange installation thanks to our authorized technicians throughout the Czech Republic (we have 10 authorized technicians distributed across regions). The installation price will depend on the materials used and the complexity of the installation. If you are interested in installation, please add this information in the order comments.

IT IS IMPORTANT TO KNOW THE CONNECTION DIAMETER TO THE WATER MAINS TO CHOOSE THE CORRECT THREAD SIZE OF 1“ OR 3/4“ FROM THE OFFER.

See how to properly unscrew the filter lid and the correct procedure for changing the cartridge.
