Mechanical water filter PX 50 with sludge valve
Code: AQCSET383 AQCSET374 Choose variantRelated products
Product detailed description
Simple filtration that removes all mechanical impurities from the incoming water up to 50 microns. This filtration is ideal as a pre-filter for subsequent filtration or for protecting accessories that require clean water without mechanical impurities such as sand, dirt, clay, hair, and other insoluble particles. It provides greater comfort and security when using water for any purpose.
Specifications:

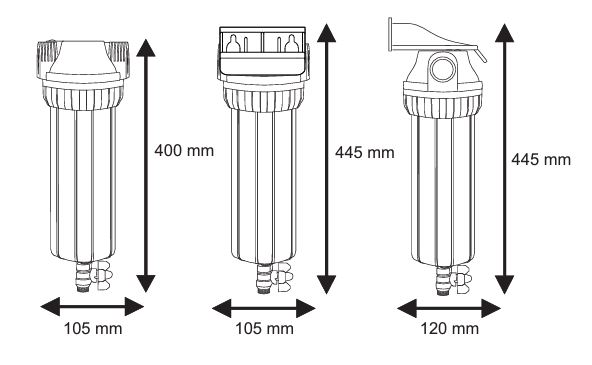

- Size 10"
- Housing: PET
- Head: polypropylene
- Cartridges: brass
- Pressure relief valve: brass
- O-ring: NBR
- Thread: 3/4", 1" BSP
- Operating pressure: 6 bar (90 psi)
- Minimum working temperature: 2ºC
- Maximum working temperature: 45°C
- Recommended flow rate: 3.8 m3/h (3/4"), 4.8 m3/h (1")
- Maximum flow rate: 4.7 m3/h (3/4"), 5.9 m3/h (1")
You should know:
The product is certified and intended for contact with drinking water.
The filter is compatible with all mechanical and washable cartridges shown in the related products below.
The package includes:
- tube with 50 micron cartridge
- wrench for tightening the tube and wall mount
- instruction manual
Installation of the device is not included in the price. We can provide installation through our authorized technicians across the Czech Republic (we have 10 authorized technicians divided by regions). The installation price will depend on the materials used and the complexity of the installation. If you are interested in installation, please add this information in the order notes.
Additional parameters
Category: | Filters for mechanical impurities |
---|---|
According to the connection: | On the water supply line |
According to the type of filter: | For mechanical impurities |
