Multi filter OPC for iron and manganese water
Code: 157/OPC AQC0001160 AQC000788 AQC000860 Choose variantRelated products
Product detailed description
The new fully automatic compact water filters OPC are designed to remove iron, manganese, and water hardness with lower pH (up to 7pH). Modern, fully digital control Italian unit and fully automatic operation. Everything in one, ideal for apartments, cottages, family homes, and small guesthouses. Easy installation and setup, the highest level of water purification efficiency with the possibility to regulate output water parameters. OPC filtration systems are intended for connection to the incoming water supply to the house.
This small "water treatment" ensures water free of discoloration (from iron - rusty water, reddish or red water, red or reddish coatings, iron taste, black stains caused by manganese, as well as softening water without limescale and white deposits) and guarantees full satisfaction when using water for any purpose. The OPC water treatment will always ensure maximum water purity.
The product is certified and intended for contact with drinking water.
NAME | RECOMMENDED NUMBER OF PERSONS | CONNECTION | AMOUNT OF FILLING | SALT CONSUMPTION | WATER CONSUMPTION | NOMINAL FLOW RATE | MAXIMUM FLOW RATE | MOUNTING HEIGHT OF CONNECTIONS | TOTAL DEPTH WITH CONNECTIONS | DIMENSIONS |
(kg/1 reg.) | (l/1 reg.) | (m³/h *) | (m³/h **) | mm | (WxHxD) | |||||
OPC 08 | 1 to 2 | 1“ | 8 l | 1 | 40 | 0.5 - 0.6 | 0.8 | 490 | 650 | 320x670x500 |
OPC 15 | 2 to 3 | 1“ | 15 l | 1.8 | 75 | 0.9 - 1.1 | 1.5 | 835 | 650 | 320x1010x500 |
OPC 25 | 4 to 6 | 1“ | 25 l | 3.0 | 125 | 1.5 - 2 | 2.5 | 950 | 650 | 320x1130x500 |
OPC 30 | 4 to 8 | 1“ | 30 l | 3.6 | 150 | 1.8 - 2.2 | 3 | 950 | 650 | 320x1130x500 |
* Nominal flow rate – flow rate for continuous filter operation. Filtration efficiency does not decrease and is constant.
** Maximum flow rate – flow rate for intermittent filter operation. Filtration efficiency does not decrease for a maximum of 5 minutes.
After 5 minutes of operation, the efficiency of filtration begins to drop very slowly.
- A mechanical pre-filter must be installed before each softener.
- A connection to the drain must be available near the filtration system, where the settled iron and manganese from the filtration is discharged.
Technical data:

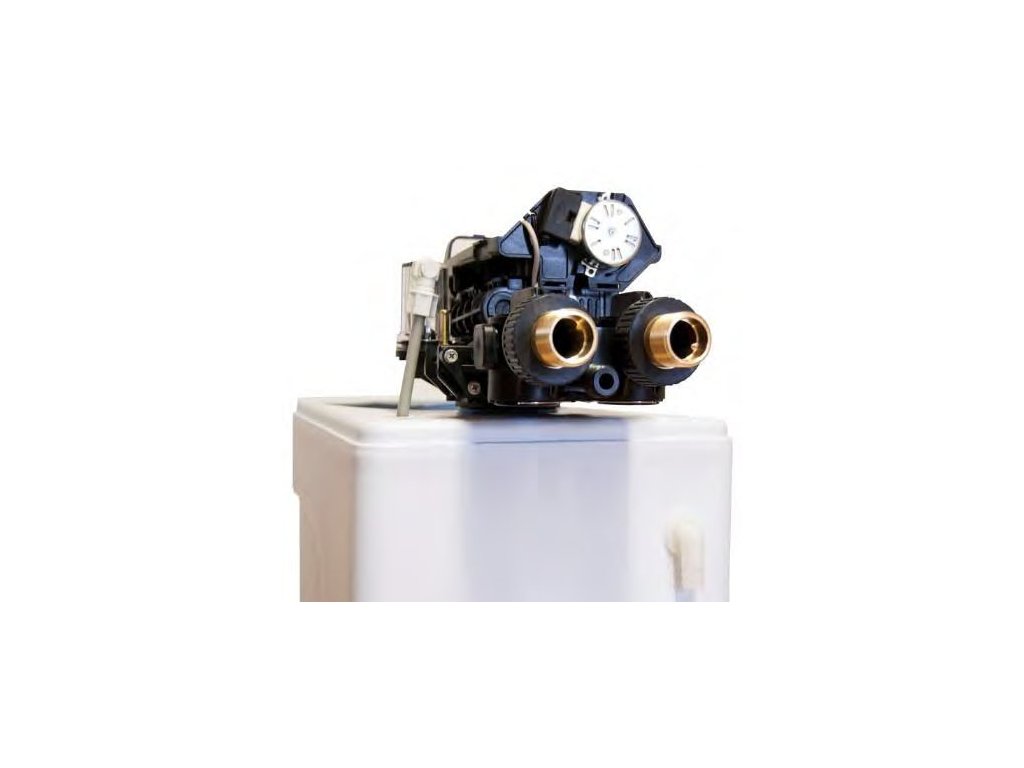

- Control unit: GE Autotrol LOGIX 255/760 (Italy)
- Control head: volumetric (capacity)
- Device programming: fully automatic, computer-controlled
- Filter filling: ion exchange resin
- Ion exchange tank: fiberglass
- Working pressure: 1.38-8.27 bar
- Input and output connections: brass 1", external thread
- Drain connection: plastic 1/2", external thread
- Operating temperatures: 2–38 °C
- Built-in bypass (for regulating water hardness at output)
- External flange with main bypass
- Built-in water meter
- Built-in flow meter
- Safety overflow
- Voltage: 230 V/50 Hz
- Power consumption: 5 W
- Color of cabinet: white
Water input requirements:
- Total hardness: max. 10 mmol/l
- Iron: max. 0.4 mg/l
- Manganese: max. 0.1 mg/l
- pH: From 5.5 to 7.5 pH
- Total mineralization: up to 4000 mg/l
IMPORTANT!
- A connection to the drain must be available nearby (the waste from the filter during regeneration is under pressure)
- A mechanical pre-filter must be installed before each softener.
- A connection to the drain must be available near the filtration, where the settled iron and manganese from the filtration is discharged.
Transportation of the filtration device
We recommend sending the device on a pallet to avoid damage during transport. If you are also purchasing regeneration salt along with the filtration device, add the pallet to your cart together with the salt.
Installation and service of the device
Our own service technicians will ensure the installation and transport (we have 14 authorized service technicians throughout the Czech Republic and Slovakia). If interested, we would be happy to provide you with a price quote. The installation price depends on the complexity and materials used (connecting hoses, valves, etc.).
We recommend performing regular service exchanges once a year. The price of a service exchange is 1,990 CZK + travel expenses, which is charged flat at 590 CZK (for Prague and Brno 990 CZK) in cases where the technician's trip is combined with other installations or services along the way.
Additional parameters
Category: | Iron and manganese filters |
---|---|
According to the type of filter: | For iron and manganese |
According to undesirable substances: | Iron, Manganese |
