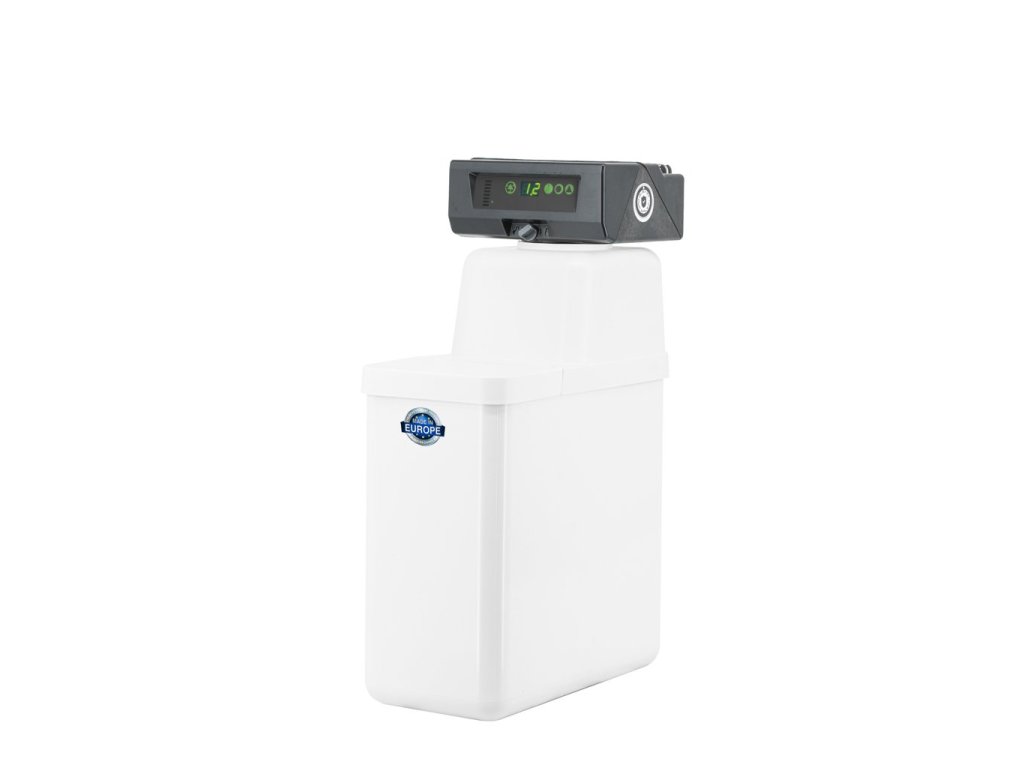

Nitrate removal filter OPD 5 Mini

Product detailed description

Filter OPD 5 Mini is a fully automatic modern device that effectively removes nitrates from the water in your home. It is designed to connect to the main water supply to the premises for central filtration.

It is the smallest filter for nitrate removal in the OPD series. With dimensions of 180x550x360 mm, it is designed to fit under the kitchen sink or in a cabinet. It is suitable for use with devices such as coffee machines, dishwashers, combi ovens, etc. The recommended number of take-off points is 1 to 2 taps. The maximum flow rate is 0.4 m³/hour.

If needed, you may also consider purchasing a nitrate filter with a larger capacity, such as OPD 8 Slim (time-based or volumetric) – for 8 liters of resin and OPD 12 Slim (volumetric) – for 12 liters of resin.

OPD filters are equipped with a reliable Autotrol valve with a camshaft system and control flaps.
Its 7-cycle regeneration ensures reduced hard water leakage and optimal use of regeneration salt. Autotrol valves are among the best-selling automatic valves for home use in Europe. Due to their modular design, they are very versatile and suitable for various applications.

The product is certified and designed for contact with drinking water.

The series of nitrate removal filters OPD Mini comes with two variants: Filter OPD 5 Mini with time-based control and Filter OPD 5 Mini with volumetric control:

• If the filter contains a control valve Pentair Autotrol 368/604 with time-based control, regeneration of the filter media is activated at pre-set time intervals (e.g., once a week).

• Models with control units Pentair Autotrol 368/606 with volumetric control are equipped with an integrated turbine that counts the amount of water that has passed through the device. The filter media is regenerated based on the flow of water (capacity regeneration).

The OPD Mini cabinet is made of durable polyethylene and is equipped with a safety overflow.

Extended 3-year warranty.

Smart automatic regeneration Logix evaluates water consumption over the past 28 days and based on that determines consumption on individual days of the week and adjusts regeneration according to the identified current consumption. It allows for easy programming with automatic capacity calculation.

TECHNICAL PARAMETERS:

Filter OPD 5 Mini –⁠ 368 –⁠ time-based

• Control valve: Autotrol 368/604
• Head control: time-based
• Device programming: automatic, computer-controlled
• Filter medium: Anex ion-exchange resin
• Medium quantity: 5 liters
• Ion-exchange tank Fiberglass
• Connection: 3/4"
• Salt consumption: 0.6 kg per regeneration
• Water consumption: approx. 26 - 43 liters per regeneration

• Pressure vessel: 6x18"
• Width: 180 mm
• Height: 550 mm
• Depth: 360 mm
• Weight without filter medium: 3.2 kg
• Waste connection: 1/2", hose nipple

• Operating pressure: 1.38 - 8.61 bar
• Operating temperatures: 2-38°C

• Electric voltage 230V/50Hz

• Power consumption 5W
• By-pass: no
• Recommended number of take-off points: 1 - 2
• *Nominal flow at 0 mmol/l: 0.2 m³/h
• **Nominal flow at 0.5 - 1 mmol/l: 0.3 m³/h
• ***Maximum flow > 1 mmol/l: 0.4 m³/h
• Filter capacity for 1 °N (dH): 20 m³
• Cabinet type housing
• Very effectively removes nitrates

Filter OPD 5 Mini –⁠ 368 –⁠ volumetric

• Control valve: Autotrol 368/606
• Head control: volumetric
• Device programming: automatic, computer-controlled
• Filter medium: Anex ion-exchange resin
• Medium quantity: 5 liters
• Ion-exchange tank Fiberglass
• Connection: 3/4"
• Salt consumption: 0.6 kg per regeneration
• Water consumption: approx. 26 - 43 liters per regeneration

• Pressure vessel: 6x18"
• Width: 180 mm
• Height: 550 mm
• Depth: 360 mm
• Weight without filter medium: 3.2 kg
• Waste connection: 1/2", hose nipple

• Operating pressure: 1.38 - 8.61 bar
• Operating temperatures: 2-38°C

• Electric voltage 230V/50Hz

• Power consumption 5W
• By-pass: no
• Recommended number of take-off points: 1 - 2
• *Nominal flow at 0 mmol/l: 0.2 m³/h
• **Nominal flow at 0.5 - 1 mmol/l: 0.3 m³/h
• ***Maximum flow > 1 mmol/l: 0.4 m³/h
• Filter capacity for 1 °N (dH): 20 m³
• Cabinet type housing
• Very effectively removes nitrates

*) Nominal flow at 0 mmol/l – flow at zero hardness leakage in the output water (calculated at an input hardness of 3 mmol/l).
**) Nominal flow 0.5 - 1 mmol/l - flow at hardness leakage in the output water in the range of 0.5 – 1 mmol/l (calculated at an input hardness of 3 mmol/l).
***) Maximum flow > 1 mmol/l - flow at hardness leakage in the output water slightly above 1 mmol/l (calculated at an input hardness of 3 mmol/l).

Transport of the filtration device

We recommend sending the device on a pallet to avoid damage during transport. If you will be purchasing regeneration salt together with the filtration device, you can add the pallet to your cart with the salt.

Installation and servicing of the device

Installation and delivery will be provided by our own service technicians (we have 14 authorized service technicians across the Czech Republic and Slovakia). If interested, we will be happy to provide you with a price quote. The installation price depends on the difficulty and the materials used (connecting hoses, valves, etc.).

We recommend performing regular service replacements once a year. The price for service replacement is 1,990 CZK + travel costs, which is charged a flat fee of 590 CZK (for Prague and Brno 990 CZK) in cases where the technician's trip is combined with other installations or services along the way.
