PX ECO filter tube with brass head

Code: 5830/1- 5830/3/4 Choose variant
Not rated
€147,60 €121,98 excl. VAT
In stock; available within 7 days In stock; available within 7 days Choose variant
Connection
Chosen variant is not available. Reset selected parameters.

Empty PX ECO filter tube with brass head and screw nut. Suitable for hot water treatment at high pressure (up to 10 bars). Size 9“ ¾. Connection ¾“ or 1“.

Detailed information

Product detailed description

Transparent filter tube PX ECO with brass head and union nut is designed for effective water filtration in households as well as for technical and industrial applicationsIt withstands even extreme conditions, and in combination with a filter cartridge, the filter is suitable for hot water treatment (up to 60 °C) at high pressure (up to 10 bars).

The design of this model consists of three main parts (head-nut-tube), ensuring easy assembly and reliable operation. The filter head is made of natural brass and the tube from PET-G, which guarantees long life and reliability. It is equipped with two air release valves.

In combination with a filter cartridge, it forms a simple filter that removes all mechanical impurities from the incoming water. This filtration is ideal as a pre-filter for further filtration or for protecting accessories that require clean water free from mechanical impurities such as sand, dirt, clay, hair, and other insoluble particles. It provides greater comfort and safety when using water for any purpose.

The package contains only the empty filter tube. The filter cartridge is not included!

Key features:

  • Water treatment at high pressure up to 10 bars
  • Internal centralizer ensures correct orientation of the filter cartridge
  • Lower pressure loss due to the special filter design
  • High versatility, compatible with DOE, BIG, COD3 filter cartridges.
  • Air release valves suitable for pressure gauge installation

Technical specifications:

  • Size: 9“ ¾
  • Connection: ¾“ or 1“
  • Tube: polyethylene glycol terephthalate (PET-G)
  • Clamping: natural brass nut CB 753 S
  • O-ring: EPDM
  • Air release valve: brass CW 614 N
  • Maximum operating pressure: 10 bars
  • Maximum operating temperature: from 5 °C to 60 °C
  • Mounting: horizontal
  • Fastening: mounting hole for axle base 66x25 mm screw thread M5
  • Connection: screw thread in inches

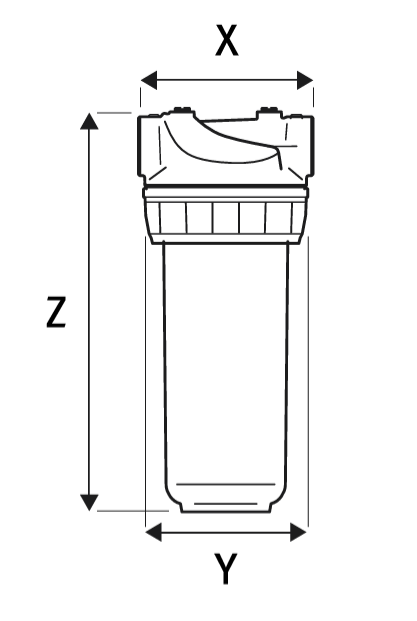

Dimensions (L×W×H):

  • 3/4" - 31 x 13.5 x 12.2 cm
  • 1" - 31 x 13.5 x 12.2 cm

Additional parameters

Category: Filters for mechanical impurities
According to the connection: On the water supply line
According to the type of filter: For mechanical impurities, For hot water
