Soda maker BS2

Product detailed description

The BS2 soda maker is designed to be placed under a work surface or integrated into cabinets or kitchen units. This type of soda maker is subsequently connected to a dispensing stand and it is necessary to combine the soda maker with a tap. Due to the possibility of integration, it is suitable for practically any location - in bars, pubs, companies, and homes.

For installation in a cabinet, the soda maker has a covered condenser, enabling hot air to be expelled through a hole in the cabinet floor into the atmosphere (in other cases, the cover is removed). The BS2 soda makers must be combined with one of the faucets from our range. The soda maker itself has a capacity of 35 l/h and allows dispensing of chilled water and soda.

Technical specifications:

• output: 35 l/h
• dispensing: chilled water and chilled soda water (the number of beverages may vary depending on the tap used)
• the size of the saturation vessel for carbonating water is 0.8l. A single draw of carbonated water is 0.8l, then you must wait 10s before you can draw again 0.8l
• dimensions w/d/h (mm): 278/428/447
• weight: 23 kg
• possibility of integration into furniture, worktop, or under a table
• connection to faucets
• possibility of setting to soda maker
• robust construction
• connection for hoses 3/8"
• output of the cooling compressor 1/5 HP
• Maximum water pressure: 4 bar
  • In case of water pressure above 4 bars, it is necessary to equip the automatic with a pressure reducing valve, we recommend a reducing valve with a manometer.
  • In case of water pressure above 3 bars, we recommend purchasing a Hunter reducing valve.

 For connection:

• water - municipal water supply - connection to a faucet with a 1/2" thread (preferably within 5m from the soda maker)
• CO2 gas - pressure cylinder
• standard electric outlet (within 1.5m from the soda maker)

For the operation of the BS2, it is necessary to also purchase a tap for dispensing!

We recommend purchasing an accessory set for its connection and operation for soda makers!

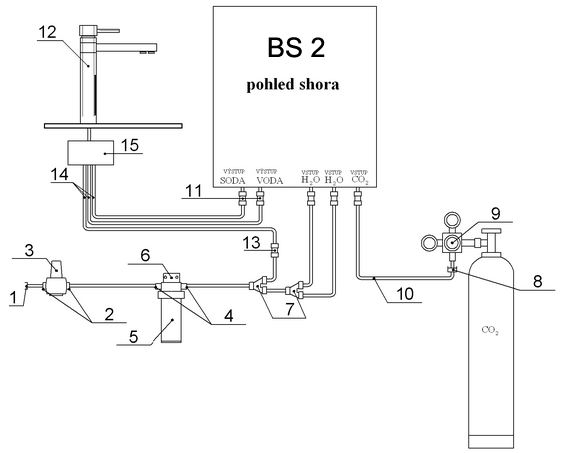

Description

1. Quick coupling h-thread 3/8-1/2 BSP
2. Quick coupling h-thread 3/8-3/8 BSPT
3. Reducing valve H2O
4. Water carbon filter 350CPS
5. Filter head
6. Quick coupling Y-h 3/8
7. Quick coupling h-thread 3/8-1/4 MFL
8. Reducing valve CO2
9. Hose 3/8
10. Quick coupling j-h 5/16-5/16
11. faucet designed for soda makers
12. Quick coupling h-h 5/16-3/8
13. Hose 5/16
14. Set of electronic valves

We recommend purchasing accessories, a connection kit, and operational equipment for soda makers, which are not included in the soda maker package. Installation, including transportation, can be provided by our authorized service AGRO AQUA PRO, s.r.o.

You should know:

• The CO2 cylinder and pressure reducing valve are not included with the soda maker

CO2 cylinder for sparkling water:
The ideal size of the CO2 cylinder that fits inside the dispenser column is 6 kg. A fully filled cylinder lasts for approximately 10,000 liters of sparkling water.

Other CO2 cylinders (dimensions and yield) are as follows:

• 500g, dimensions 52 cm height, 6 cm diameter, approximately 1,000l of sparkling water
• 2kg, dimensions 53 cm height, 10.5 cm diameter, approximately 3,000l of sparkling water
• 4kg, dimensions 78 cm height, 10.4 cm diameter, approximately 6,000l of sparkling water
• 6kg, dimensions 79 cm height, 14 cm diameter, approximately 10,000l of sparkling water

We recommend securing a pressure cylinder on a rental basis (you won't have to do annual mandatory inspections if you purchased the cylinder) from companies like Linde, Immergas, or others that supply pressure cylinders; the annual rent costs about 400 CZK and cylinder filling is 400 CZK.

Installation and service of the device

Installation will be provided by our own service technicians throughout the Czech Republic and Slovakia. The installation fee starts at 1,980 CZK  + travel cost of 16 CZK/km or a flat travel fee of 990 CZK (outside Prague, Brno) / 1490 CZK (Prague, Brno) if the technician's trip is combined with other installations or services along the way (we have 16 own technicians distributed across all regions). The installation price is indicative and depends on the difficulty of the installation and the materials used.

Service exchanges are performed once every 6 months based on water consumption. The price for service exchange is 2,590 CZK + travel costs, which are paid at a flat rate of 590 CZK (for Prague and Brno 990 CZK) if the technician's trip is combined with other installations or services along the way. Or 14 CZK/km if it is a separate technician dispatch - paid in cash to the technician.

Service exchange includes the work of an authorized technician, replacement of filter cartridges, disinfection, inspection, and adjustment of the filter.
