Sodabar SLP2

Code: AQC000722
Not rated
€1 619,60 €1 338,51 excl. VAT
In stock

The Sodobar SLP2 with a capacity of 35 liters per hour is designed for placement on a countertop, bar, etc. It offers dispensing of chilled water and chilled soda water.

Detailed information

Product detailed description

The Sodobar SLP2 is a high-capacity device with a flow rate of 35 l/h. Double faucet Sodobar SLP2 is popular for its simplicity and durability, especially in restaurants, cafeterias, company canteens, and even in production halls, offices as a source of drinking water for employees or in households. Thanks to the dispensing through two faucets, beverages can be poured quickly and easily. The faucets also allow easy filling into PET bottles.

Technical Specifications

  • dispensing: chilled water and chilled carbonated water
  • modern design with glass top
  • stainless steel casing
  • robust construction
  • capacity: 35 l/h
  • dimensions w/d/h (mm): 277/515/477
  • weight 35 kg
  • hose connection 3/8"
  • cooling compressor capacity 1/5 HP
  • Maximum water pressure: 4 bar
    • If the water pressure exceeds 4 bars, it is necessary to equip the device with a pressure reducing valve; we recommend a pressure reducing valve with a manometer.
    • If the water pressure exceeds 3 bars, we recommend purchasing the Hunter pressure reducing valve.

The Sodobar comes with a drip tray.

To install the sodobar, you need:

  • water - municipal water supply - connection to a 1/2" threaded tap (preferably within 5 m of the sodobar), the input water must meet pressure and quality criteria
  • CO2 gas - pressure bottle
  • electricity - standard electrical outlet (within 1.5 m of the sodobar)

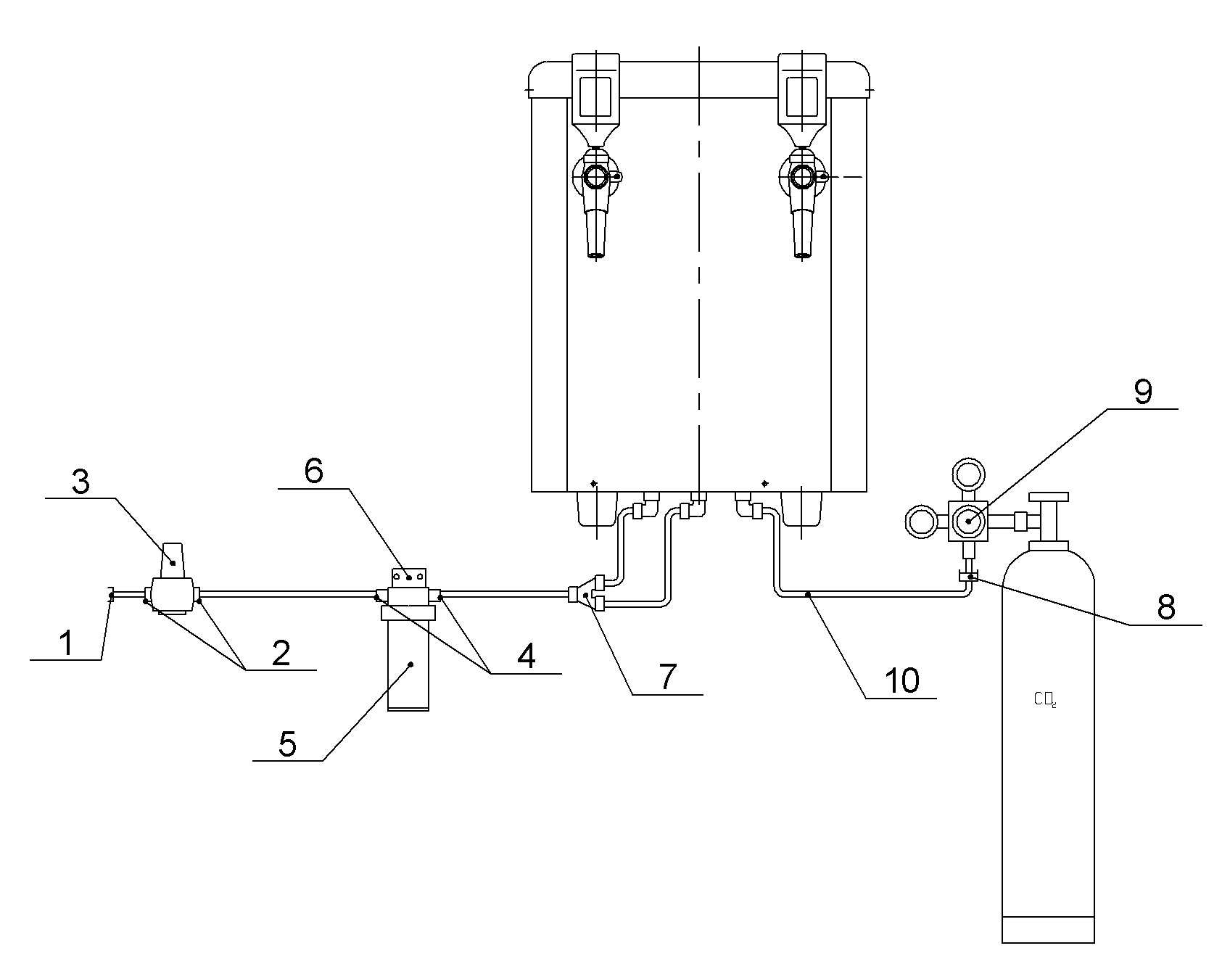

slp1 connection

  1. Quick connector male thread 3/8-1/2 BSP

  2. Quick connector male thread 3/8-3/8 BSPT

  3. Pressure reducing valve H2O

  4. Quick connector male thread 3/8-3/8 BSPT

  5. Filter H2O

  6. Filter head

  7. Quick connector Y-male 3/8

  8. Quick connector male thread 3/8-1/4 MFL

  9. CO2 pressure reducing valve

  10. Calibrated hose 3/8“

You should know:

  • The CO2 bottle and pressure reducing valve are not included with the sodobar. You need to purchase a Connection Kit for Soda Machines.
  • The CO2 pressure reducing valve is not included with the dispenser, it can be purchased here.

CO2 bottles for sparkling water:

  • 500g, dimensions 52 cm height, 6 cm diameter, approx. 1,000l of sparkling water
  • 2kg, dimensions 53 cm height, 10.5 cm diameter, approx. 3,000l of sparkling water
  • 4kg, dimensions 78 cm height, 10.4 cm diameter, approx. 6,000l of sparkling water
  • 6kg, dimensions 79 cm height, 14 cm diameter, approx. 10,000l of sparkling water

We recommend renting a pressure bottle (so you don't have to do annual mandatory inspections if you bought the tank) from companies like Linde, Immergas, or others providing pressure bottles; the annual rent costs about 400 CZK, and refilling the bottle is 400 CZK.

Installation and service of the device

Installation will be carried out by our own service technicians across the Czech Republic and Slovakia. The installation price starts from 1,980 CZK + travel expenses 16 CZK/km or a flat travel fee of 990 CZK (outside Prague, Brno) / 1490 CZK (Prague, Brno) if the technician's trip coincides with other installations or service calls (we have 16 technicians spread across all regions). The installation price is indicative, it depends on the complexity of the installation and the materials used.

Service exchanges are performed once every 6 months depending on water consumption. The price for a service exchange is 2,590 CZK + travel expenses, charged at a flat rate of 590 CZK (for Prague and Brno 990 CZK) if the technician's trip is combined with other installations or service calls. Alternatively, 14 CZK/km applies if it is just a standalone technician visit - payable in cash to the technician.

The service exchange includes the work of an authorized technician, replacement of filter cartridges, disinfection, and inspection and adjustment of the filter.

Additional parameters

Category: Sodabar
According to the type of water: Chilled, Sparkling
According to use: For cafes, restaurants, and hotels
Execution: On the counter, table, counter
