TAP C2 80 Dispenser

Code: 4012/AC 4012/CS Choose variant
Not rated
€3 199,20 €4 399,20 from €3 199,20 €2 643,97 excl. VAT €3 635,70 excl. VAT from €2 643,97 excl. VAT
In stock; available within 14 days In stock; available within 14 days Choose variant
Type
Chosen variant is not available. Reset selected parameters.
Connection adapter

Distributor of sparkling and chilled or room temperature and chilled water with a tap stand with two faucets in the package. Water output 80 l/h. Made of stainless steel.

Detailed information

Product detailed description

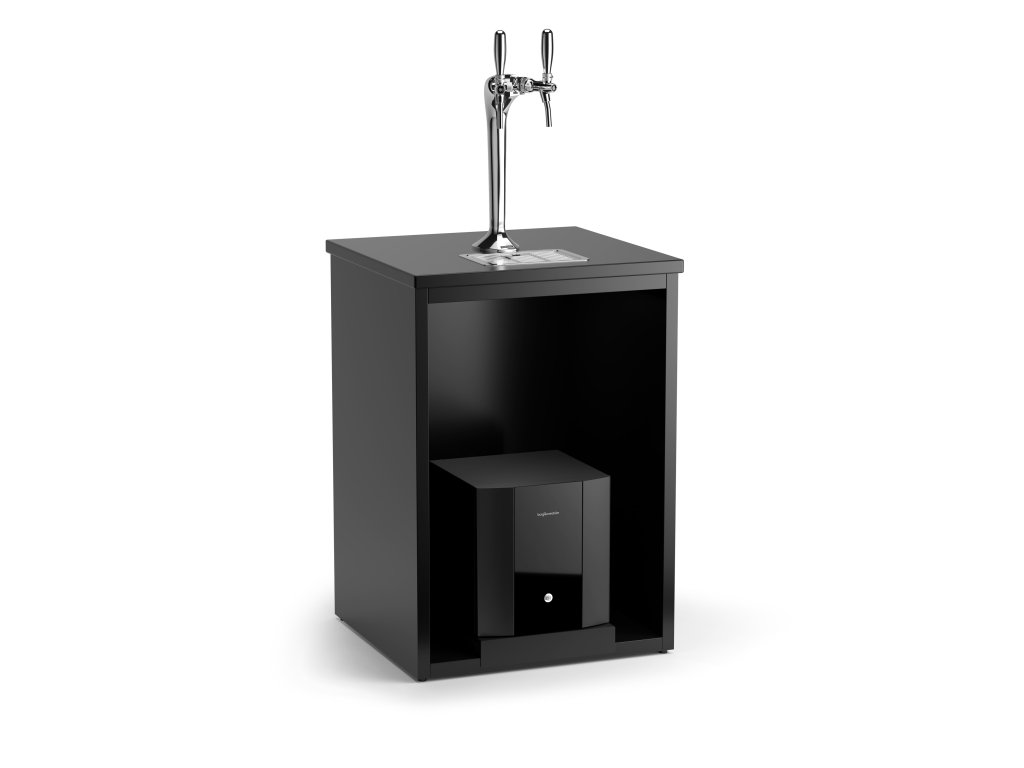

High-capacity and comfortable soda dispenser TAP C2 80 with an elegant tap stand featuring two stainless steel taps. The compact soda dispenser can be easily placed under the kitchen counter. Thanks to the high capacity of the unit, you have 80 liters of water available per hour.

You can choose from two variants:

  • AC - room temperature and chilled
  • CS - chilled and sparkling

TAP C2 80_2

ADVANTAGES:

  • high capacity of the soda dispenser
  • low energy consumption
  • compact size of the unit
  • elegant, minimalist design
  • discreet, hygienic control panel
  • easy to use

PACKAGE CONTENT:

  • cooling unit
  • tap

WATER DISPENSING:

  • chilled and room temperature
  • chilled and sparkling

TECHNICAL PARAMETERS:

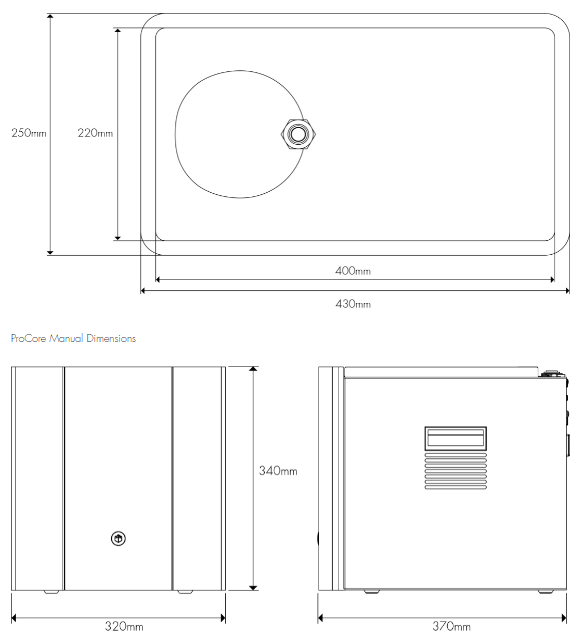

    • Dimensions of the soda dispenser (w x d x h): 320 x 345 x 335 mm
    • Height of the tap: 470 mm
    • Maximum power consumption: 0.5 kW
    • Material: stainless steel
    • Direct cooling
    • Voltage: 50 Hz/ 240 V
    • Temperature of chilled water: Min 2°C/Max 11°C
    • Water dispensing rate: 80 l/h
    • a drawing A3 is included for the cutout hole for the drip tray in the countertop

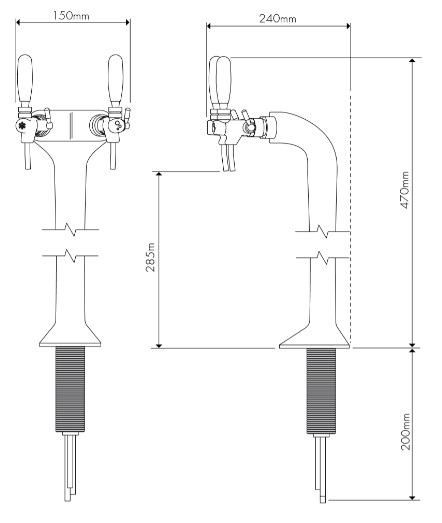

 C2 drawing

You should know:

  • CO2 bottle and CO2 pressure reducer are not included with the dispenser.
  • The listed price does not include installation. The installation price is 1,500 CZK including VAT + a lump sum travel fee of 990 CZK (outside Prague, Brno) / 1490 CZK (Prague, Brno).
  • Drip tray is not included in the package.
  • Maximum water pressure: 4 bar
    • If water pressure exceeds 4 bars, it is necessary to equip the unit with a pressure reducer; we recommend pressure reducer with manometer
    • If water pressure exceeds 3 bars, we recommend purchasing Hunter pressure reducer

CO2 bottle for sparkling water:

  • 500g, dimensions 52 cm height, 6 cm diameter, approx. 1,000 liters of sparkling water
  • 2kg, dimensions 53 cm height, 10.5 cm diameter, approx. 3,000 liters of sparkling water
  • 4kg, dimensions 78 cm height, 10.4 cm diameter, approx. 6,000 liters of sparkling water
  • 6kg, dimensions 79 cm height, 14 cm diameter, approx. 10,000 liters of sparkling water

We recommend renting the pressure bottle (so you don’t have to do annual mandatory inspections, if you were to buy the bottle) from Linde, Immergas, or other suppliers, the annual rental is about 400 CZK and refilling the bottle costs 400 CZK.

Recommendations for filtration (not included with the dispenser):

  • Antibacterial carbon filter with silver AQL 88 or carbon filter with hardness water scale reduction for hard input water AQL 90.

Installation and service of the unit

Installation will be carried out by our own service technicians throughout the Czech Republic and Slovakia. The installation cost starts from 1,980 CZK  + travel fee 16 CZK/km or a lump sum travel fee of 990 CZK (outside Prague, Brno) / 1490 CZK (Prague, Brno) in case the technician’s trip is combined with other installations or services on the way (we have 16 technicians spread across all regions). The installation price is indicative, depending on the complexity of the installation and the installation materials used.

Service replacements are performed once every 6 months depending on water consumption. The cost of a service replacement is 2,790 CZK + travel fee, charged as a lump sum of 590 CZK (for Prague and Brno 990 CZK) in case the technician’s trip is combined with other installations or services on the way. Or 14 CZK/km if it's a standalone trip of the technician - paid in cash to the technician.

A service replacement includes the work of an authorized technician, replacement of filter cartridges, disinfection, inspection, and adjustment of the filter.

Additional parameters

Category: Sodabar
According to the type of water: Room, Chilled, Sparkling
According to use: For cafes, restaurants, and hotels
Execution: Built-in / Under the counter
