TAP C3 80 Dispenser

Product detailed description

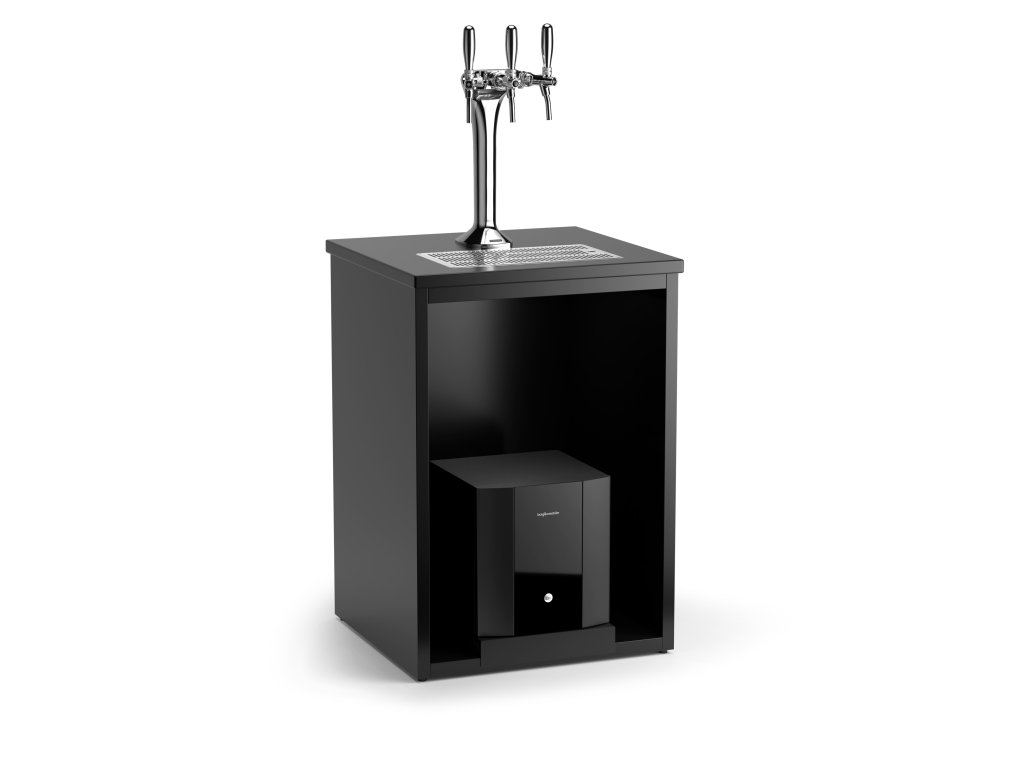

High-capacity and comfortable soda dispenser TAP C3 80 with an elegant dispensing stand featuring three stainless steel taps. The compact soda dispenser can be easily placed under the kitchen counter. Thanks to the high capacity of the device, you have access to 80 l of chilled/room temperature and 80 l of sparkling water per hour.

ADVANTAGES:

• high capacity of the soda dispenser
• low energy consumption
• compact size of the device
• elegant, minimalist design
• discreet, hygienic control panel
• easy to use

PACKAGE CONTENT:

• cooling unit
• dispensing tap

WATER DISPENSING:

• chilled
• room temperature
• sparkling

TECHNICAL PARAMETERS:

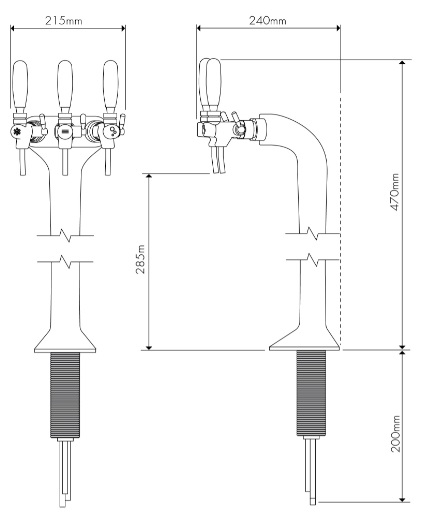

• • Dimensions of the soda dispenser (w x d x h): 320 x 345 x 335 mm
  • Height of the tap: 470 mm
  • Maximum consumption: 0.5 kW
  • Material: stainless steel
  • Direct cooling
  • Voltage: 50 Hz/240 V
  • Temperature of chilled water: Min 2°C/Max 11°C
  • Water dispensing per hour: 80 l/h
  • Maximum water pressure: 4 bar
    • In case of water pressure above 4 bars, it's necessary to equip the unit with a pressure reducing valve; we recommend a pressure reducing valve with a manometer.
    • In case of water pressure above 3 bars, we recommend purchasing a Hunter pressure reducing valve.

You should know:

• The CO2 bottle and CO2 pressure reducing valve are not included with the dispenser.
• The listed price does not include installation. The installation price is 1,500 CZK including VAT + a flat travel fee of 990 CZK (outside Prague, Brno) / 1490 CZK (Prague, Brno).
• The drip tray is not included in the package.

CO2 bottle for sparkling water:

• 500g, dimensions 52 cm height, 6 cm diameter, approximately 1,000 l of sparkling water
• 2kg, dimensions 53 cm height, 10.5 cm diameter, approximately 3,000 l of sparkling water
• 4kg, dimensions 78 cm height, 10.4 cm diameter, approximately 6,000 l of sparkling water
• 6kg, dimensions 79 cm height, 14 cm diameter, approximately 10,000 l of sparkling water

We recommend renting the pressure bottle (so you won’t have to perform annual mandatory inspections if you were to buy the cylinder) from companies like Linde, Immergas, or other suppliers of pressure bottles; the annual rent costs around 400 CZK, and the bottle filling is 400 CZK.

Filtration recommendations (not included with the dispenser):

• Antibacterial carbon filter with silver AQL 88 or carbon filter with scale reduction for hard incoming water AQL 90.
• Recommended service change of the filter cartridge every 6 months, which is provided by our authorized service throughout the Czech Republic and Slovakia.

Installation and service of the device

Installation is provided by our own service technicians throughout the Czech Republic and Slovakia. The installation price starts from 1,980 CZK  + travel fee 16 CZK/km or flat travel fee of 990 CZK (outside Prague, Brno) / 1490 CZK (Prague, Brno) if the technician's trip is combined with other installations or services on the way (we have 16 technicians distributed across all regions). The installation price is indicative and depends on the complexity of the installation and the materials used.

Service changes are performed once every 6 months based on water consumption. The price of a service change is 2,790 CZK + travel fee, which is paid flat 590 CZK (for Prague and Brno 990 CZK) if the technician's trip is combined with other installations or services on the way. Or 14 CZK/km if it's just the technician's trip - this is paid in cash to the technician.

The service change includes the work of an authorized technician, replacement of filter cartridges, disinfection, inspection, and filter adjustment.
