Tap T1 Dispenser
Code: 4479/CER2 4479/CER3 4479/CER4 4479/CER5 4479/CER6 DISPP00086 4479/CHL2 DISPP00098 4479/CHL4 4479/CHL5 4479/CHL6 4479/CHL Choose variantRelated products
Product detailed description

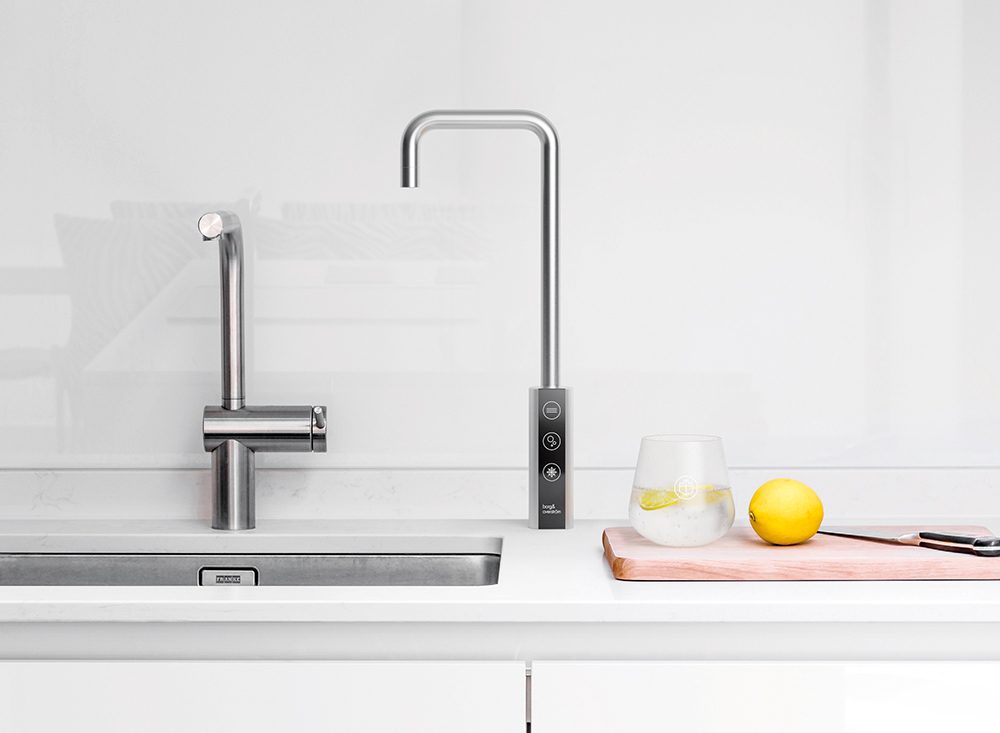

High-capacity and comfortable soda dispenser TAP T1 with an elegant minimalist faucet made of stainless steel. The compact soda dispenser can be easily placed under the kitchen counter. Thanks to the high capacity of the device, you have up to 50 liters of water per hour available.
You control the water dispensing simply by pressing a button on the control panel.

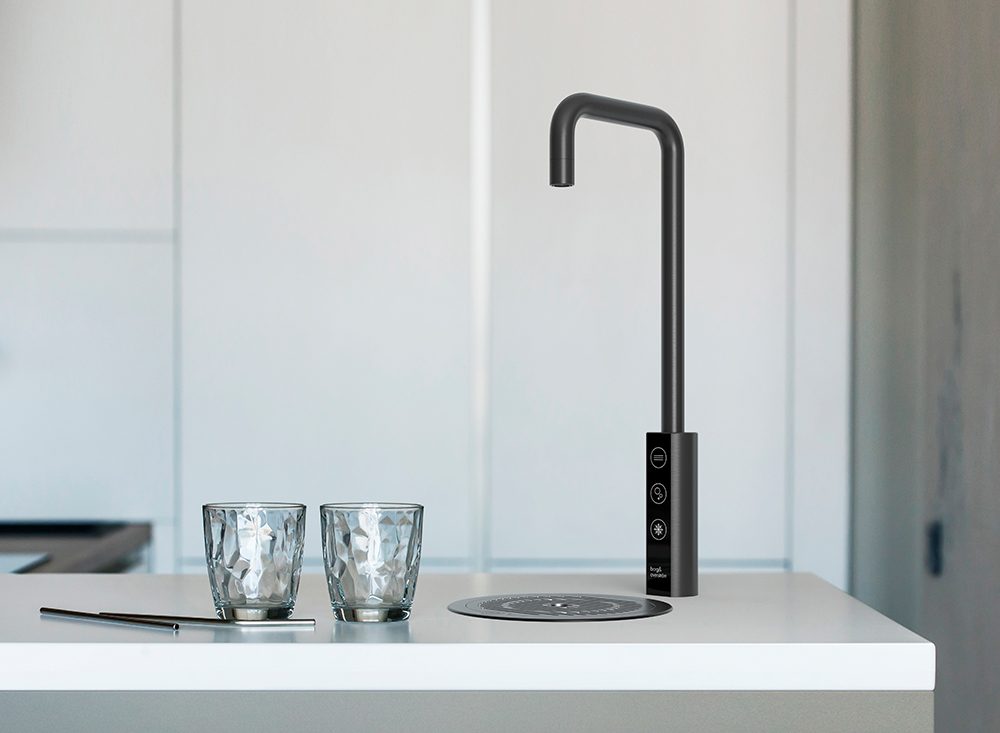

You can choose the stylish faucet in black or silver color.
You have three options for water dispensing:
- AC - room temperature and chilled
- CS - chilled and sparkling
- ACS - room temperature, chilled, and sparkling
You can also choose an option with an effective LED-UV system that will ensure safely clean water.
ADVANTAGES:
- high soda dispenser capacity - 50 liters per hour
- low energy consumption
- compact size of the device
- elegant, minimalist design
- hygienic control panel with antimicrobial technology
- easy to use
- includes ventilation base
PACKAGE CONTENT:
- cooling unit
- faucet
- ventilation base
If you need a drip tray for the faucet, you can purchase it separately on our e-shop.
WATER DISPENSING:
- chilled
- room temperature
- sparkling
TECHNICAL PARAMETERS:
- Dimensions of the soda dispenser (w x d x h): 320 x 375 x 335 mm
- Height of the faucet: 385 mm (for pouring 320 mm)
- Material: stainless steel
- Direct cooling R290
- Voltage: 50 Hz/ 230 V
- Temperature of chilled water: Min 2°C/Max 11°C
- Water dispensing per hour: 50 l/h
- Maximum water pressure: 4 bar
- In case of water pressure above 4 bars, it is necessary to equip the dispenser with a pressure reduction valve; we recommend a reduction valve with a manometer
- If the water pressure is above 3 bars, we recommend purchasing Hunter pressure regulation valve

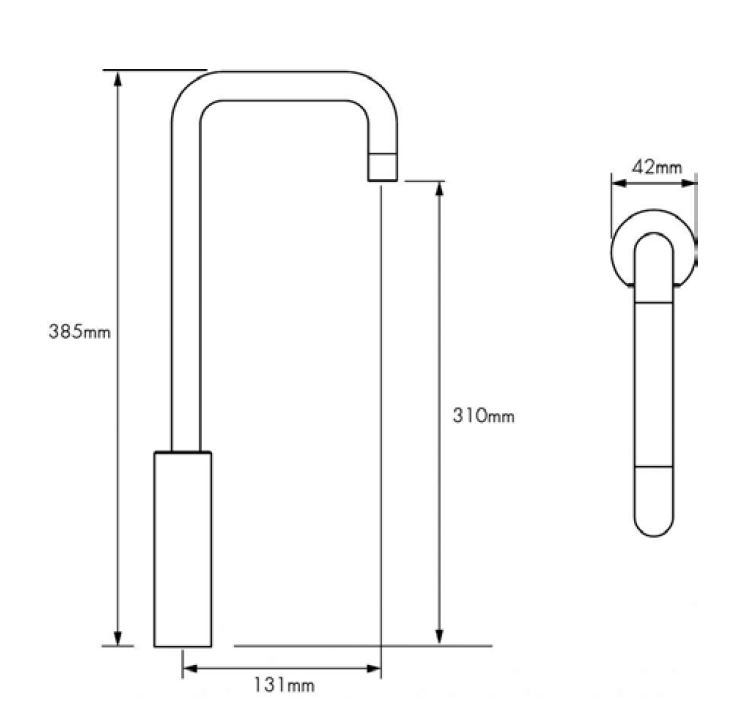

Dimensions of the dispensing faucet:

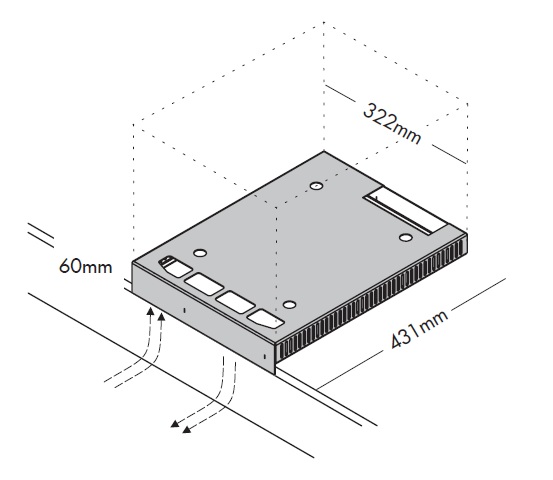

Dimensions of the ventilation base:
You should know:
- The CO2 bottle and CO2 reduction valve are not included with the dispenser.
CO2 bottle for sparkling water:
- 500g, dimensions 52 cm height, 6 cm diameter, approximately 1,000 liters of sparkling water
- 2kg, dimensions 53 cm height, 10.5 cm diameter, approximately 3,000 liters of sparkling water
- 4kg, dimensions 78 cm height, 10.4 cm diameter, approximately 6,000 liters of sparkling water
- 6kg, dimensions 79 cm height, 14 cm diameter, approximately 10,000 liters of sparkling water
We recommend renting a pressure bottle (no need for annual mandatory inspections if you buy the bomb) from companies like Linde, Immergas, or others that supply pressure bottles; the annual rent costs about 400 CZK and filling the bottle 400 CZK.
Recommendations for filtration (not included with the dispenser):
- Antibacterial carbon filter with silver AQL 88 or carbon filter with lime scale elimination for hard inlet water AQL 90.
- Recommended service change of the filter cartridge every 6 months, which our authorized service provides throughout the Czech Republic and Slovakia.
Installation and servicing of the device
Installation will be provided by our own service technicians throughout the Czech Republic and Slovakia. The installation price starts from 1,980 CZK + travel expenses 16 CZK/km or a flat travel fee of 990 CZK (outside Prague, Brno) / 1490 CZK (Prague, Brno) if the technician's trip is combined with other installations or services along the way (we have 16 technicians divided across all regions). The installation price is indicative and depends on the complexity of the installation and the materials used.
Service replacements are performed once every 6 months, depending on water consumption. The price for service replacement is 2,790 CZK + travel expenses, which is charged at a flat rate of 590 CZK (for Prague and Brno 990 CZK) if the technician’s trip is combined with other installations or services along the way. Or 14 CZK/km in cases of a standalone technician visit - payment is made in cash to the technician.
Service replacement includes the work of an authorized technician, replacement of filter cartridges, disinfection, inspection, and adjustment of the filter.
Additional parameters
Category: | Sodabar |
---|---|
According to the type of water: | Room, Chilled, Sparkling |
According to use: | For cafes, restaurants, and hotels |
Execution: | Built-in / Under the counter |
