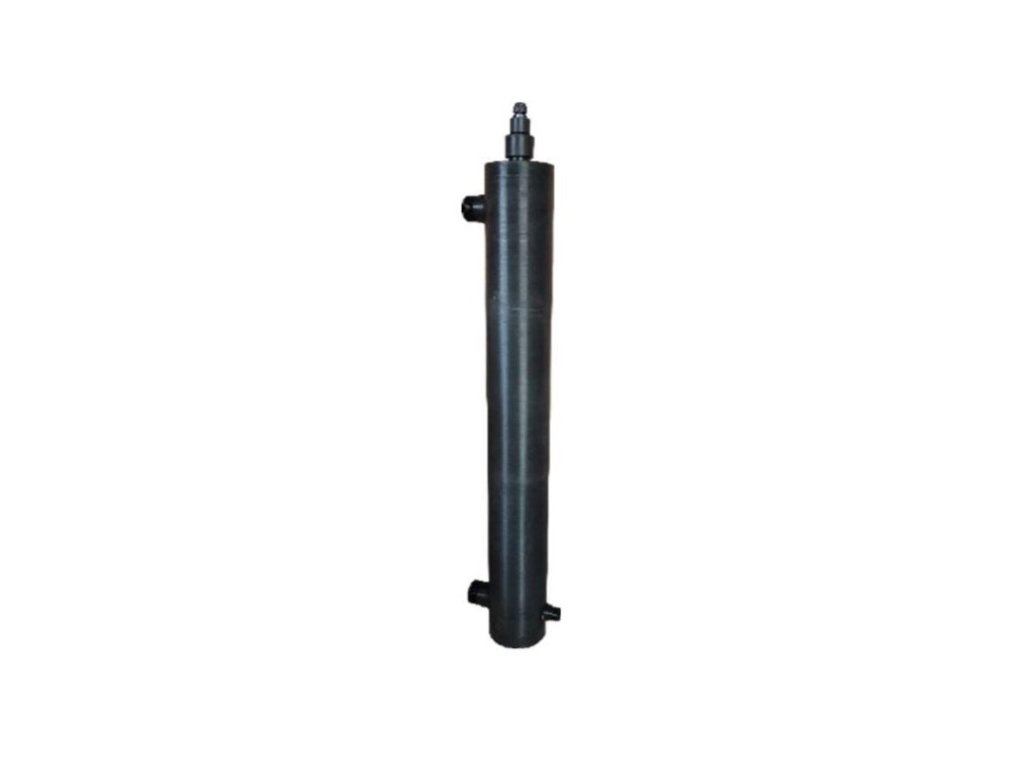

UV lamp ECO POOL L11-L22 (POLYPROPYLENE)

Product detailed description

High-performance mercury UV lamps with effective water disinfection are an ideal choice for pools, helping to reduce chlorine usage and minimize the formation of chloramines – the main causes of eye and skin irritation. They are designed for vertical installation for easy mounting and space-saving. The use of UV-C radiation enables effective water disinfection without unwanted chemicals, thus providing a more pleasant and healthier swimming experience. The polypropylene construction makes them ideal for use in highly corrosive environments.

Key features:

• Effective reduction of chloramines: UV radiation helps break down combined chlorine, thereby reducing odor and irritation.
• UV radiation dose: 25,000 - 30,000 µWsec/cm³, ensuring effective sterilization of water.
• Highly efficient UV-C lamps: Mercury lamps with a lifespan of up to 9,000 hours provide reliable performance.
• Quality construction: The polypropylene reactor allows use in highly corrosive environments such as seawater and
  electrolytic processes.
• Meets European standards: Complies with EN 55022; EN 61000-3-2; EN 61000-4 requirements.
• UV3 controller with LCD display: Clear control and monitoring of sterilizer parameters.
• Lamp lifespan monitoring: Provides accurate information on when to replace.
• Lamp lifespan counter: Monitors total operating time for better maintenance planning.
• Automatic activation with flow: The sterilizer activates only with water flow, optimizing energy consumption.

Optional accessories available:

• Radiation and temperature sensor: Provides accurate data for optimizing operation.
• Flanged inlet/outlet: For easy installation into various types of pool systems.

Available variants

Control boxes:

• LED Ballast provides basic monitoring and control functions with excellent efficiency and easy setup.
• High-efficiency electronic ballast: Optimizes performance and extends lamp lifespan.
• Power supply: Flexible voltage 90–240 V for universal use.
• Output power: Option to select power 40 W or 80 W.
• Indicator LEDs: Three color LEDs (red, green, and orange) for easy monitoring of lamp status.
• Cables: The package includes a 1.5m connecting cable and a 1.5m power cable.
• Water flow monitoring: Activation of the UV lamp upon flow detection.
• Operating hour counter: With reset function for easy monitoring and maintenance.
• Certification: CE EN 55022, EN 61000-3-2, EN 61000-4.
• Optional features available: Sound alarm.

• The CUBE offers extended functions for professional use with a backlit display and accurate monitoring of operating parameters.

• High-efficiency electronic ballast: For performance optimization and increased energy efficiency.
• Power supply: Standard voltage 230 V, with the option to switch to 115 V.
• LCD display: White/blue backlit display with 2x8 characters for clear visualization of lamp status and operating data.
• Hour counter: Total and partial hour counter for precise monitoring of operating time.
• Flow switch input: Activation upon flow detection for economical operation.
• Electromagnetic valve control: For automated control of water flow.
• Lamp replacement counter: Information on lamp lifespan with scheduling options for replacement.
• Alarm relay with free contact: Allows easy connection to external monitoring systems.
• Optional features available: Sound alarm, 4-20 mA output, Sensor control.
