UV lamp King 4L

Product detailed description

The small UV LED lamp King 4L is a device designed for eliminating bacteria, cysts, and viruses from water with an efficiency of up to 99.9 %. The UV lamp connects directly to the outlet tap of the water filtration system or the dispenser before the quick connector 3/8" (3.5 mm plastic hose). This disinfection method is applicable in family homes, cottages, laboratories, restaurants, and hospitals.

Water disinfection using the UV LED lamp works by emitting ultraviolet light in the range of 200 to 400 nanometers, which is capable of damaging the DNA and molecular structure of microorganisms including bacteria, viruses, and molds.

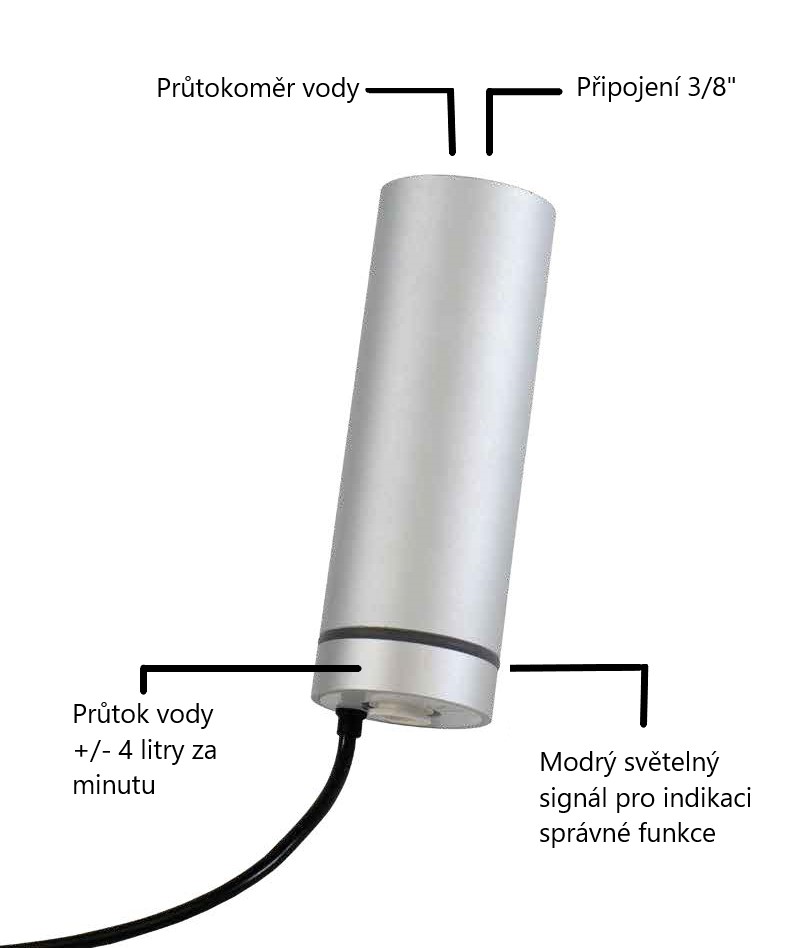

The device is equipped with a water flow meter for switching the UV lamp on and off and a blue light indicator to signal proper operation.

Unlike traditional UV lamps, UV LED technology offers several key advantages: • Energy efficiency: LED UV disinfection devices consume less energy compared to traditional UV lamps, resulting in cost savings and reduced environmental impact. • Longer lifespan: UV LED lamps have a longer lifespan, minimizing the need for frequent replacements and reducing maintenance costs. • Safety and compactness: UV LED devices are safe and compact. They can be easily integrated into various systems such as water purifiers, air purifiers, and portable devices. • Instant on/off: The device provides immediate disinfection without the need for heating or cooling, ensuring an efficient cleaning process in a shorter time. The device automatically deactivates when the water flow stops.

For connecting the UV lamp, we recommend using surge protection UV Protect S PO20 in the socket. This will protect the UV lamp as well as the transformer from surges caused by, for example, current shocks or thunderstorms.

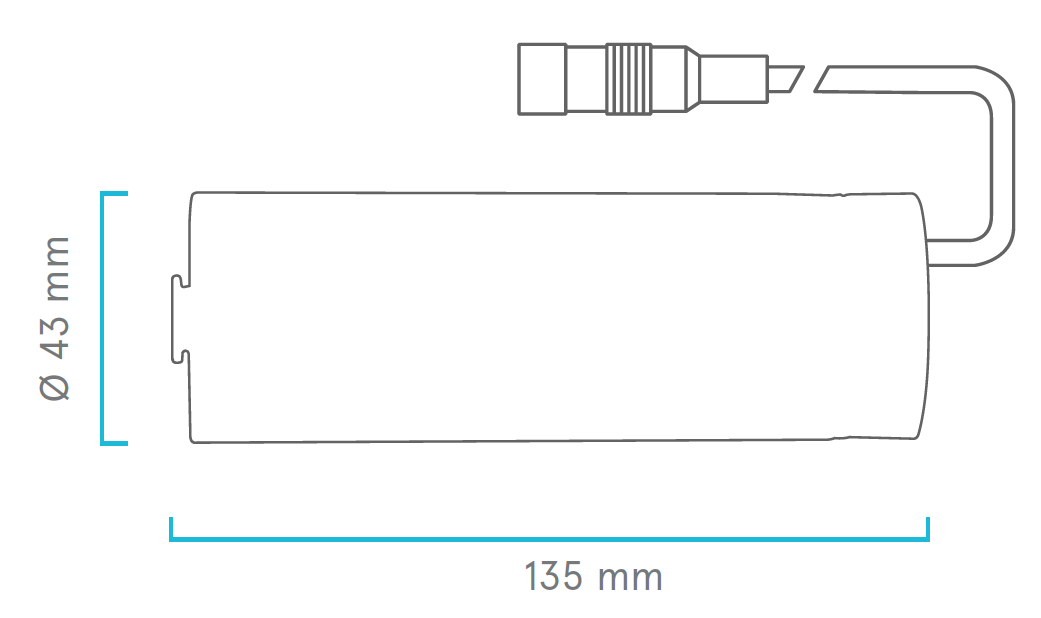

Technical parameters: Material: stainless steel, polypropylene Connection: 3/8“ Length: 135 mm Diameter: 43 mm Input voltage: 100V-240V 50/60Hz Output voltage: 24V 0,5A Operating temperature: 5°C - 38°C Pressure: 0,1-0,4 MPa UV light: 80mW Flow: 4 l/min Filtration efficiency: up to 99.9 % Lifespan: 3000 h (5 – 8 years depending on water flow)
