UV lamp SMP 7-44

Code: 5554/SMP 5554/SMP2 5554/SMP3 5554/SMP4 5554/SMP5 Choose variant
Not rated
€8 723,20 €11 843,20 €13 799,20 €15 527,20 €16 515,20 from €8 723,20 €7 209,26 excl. VAT €9 787,77 excl. VAT €11 404,30 excl. VAT €12 832,40 excl. VAT €13 648,93 excl. VAT from €7 209,26 excl. VAT
Currently unavailable Currently unavailable Currently unavailable Currently unavailable Currently unavailable Choose variant
Series SMP
Chosen variant is not available. Reset selected parameters.

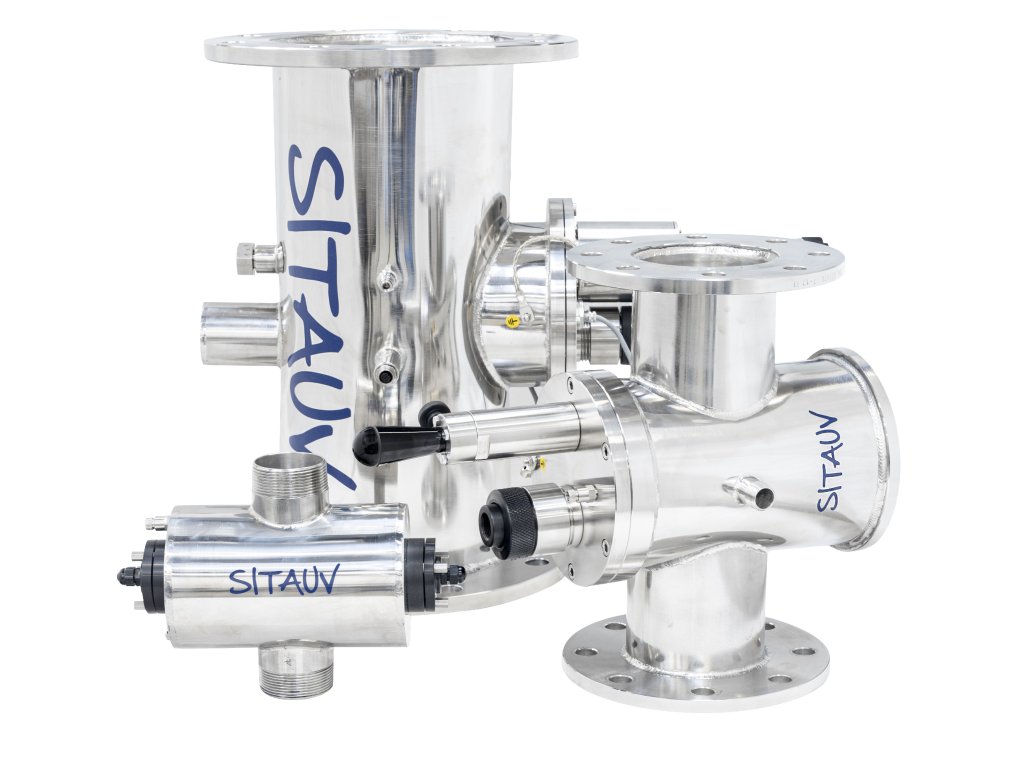

Industrial UV lamps SMP have a flow rate of 30-252m3/hour, are equipped with medium-pressure discharge lamps (operating pressure up to 10 bar) and have a very compact stainless steel piping, making them ideal for installation in technical rooms with limited space.

Detailed information

Product detailed description

UV lamps are designed to eliminate bacteria, cysts, and viruses from water using UV radiation. This disinfection method is applicable for family homes, cottages, laboratories, restaurants, hospitals, and also in industry.

How UV lamps generally work

Water enters the stainless steel tube and then flows inside the tube around a powerful lamp located inside a watertight casing. Ultraviolet radiation kills bacteria and viruses and damages their DNA molecular structure, thus preventing them from reproducing. At the same time, it does not introduce any changes to the chemical composition of the water, nor does it produce by-products. Ultraviolet radiation is completely harmless, eco-friendly, easy, inexpensive, and is the most modern method of disinfection.

SMP UV lamps are particularly suitable for pools and aquariums, but also as additional treatment in water treatment systems. They use powerful medium-pressure lamps (300 W to 12 kW) in a compact design, requiring minimal space for installation and allowing for effective treatment of large volumes of water. They can handle operational pressure of up to 10 bar and are made of stainless steel.
Thanks to the polychromatic radiation (180-600 nm), these systems effectively break down chemicals in the water, making them ideal for use in pools to reduce the concentration of combined chlorine, as well as in waterworks and treatment plants as supplementary treatment. The systems are made from durable 316L stainless steel, can be installed vertically or horizontally, and are easily accessible for maintenance.

Overview of SPM UV lamps

SMP series SMP 7 SMP 11 SMP 22 SMP 33 SMP 44
Flow rate (m3/h): 30 55 125 235 252
IN/OUT (PN 10) 3"M DN 100 DN 150 DN 200 DN 200
Power consumption (kW) 0.6 1 2 3.2 3.2
Number of lamps: 1
Lamp lifespan (h): 10,000
Lamp power control YES
Pipe material AISI 316 L
UV-C dose @ UVT 97% - 1cm 600 J/m2 for combined chlorine reduction
Maximum pressure (bar) 10
Manual wiper YES
Electric panel ST or ECOLINE
Electric supply 230 V - 50/60 Hz



UV lamps are typically supplied with the Ecoline panel, and upon request, the UV lamp can be supplied with the ST panel.

Both panels are made of the same material and have an IP 54 protection rating; they also have a hour counter, alarm, remote activation option, and a timer. The Ecoline panel is equipped with a single-language LCD2 display, while the SP panel has a 7'' touch and multilingual display.
The Ecoline panel additionally has digital outputs, event data logging, UV dose calculation, lamp power regulation, flow measurement - UVT input, and Ethernet, USB, Serial (Modbus, TCP/IP, RTU).

We are happy to help you choose a UV lamp tailored to your needs; do not hesitate to contact our specialists.

Additional parameters

Category: UV lamps for water
By type: UV lamps
Product type for water treatment: UV lamps
