UV lamp VIQUA Sterilight VH-410 - 60 W

Product detailed description

• Flow rate up to 3.3 m³/hour
• Dimensions: length 596 mm, diameter 89 mm
• 1" external threads
• Power consumption 60 W
• Replaceable lamp: S410RL-HO
• Max operating pressure: 8.6 bar
• Stainless steel housing of the UV lamp made of SS304
• Housing made of SS316 – available upon request
• Highly efficient UV lamps
• New intelligent power supply with visual and audible malfunction signaling
• Made in Canada

VIQUA UV lamps are designed to remove bacteria, cysts, and viruses from water using UV radiation. This disinfection method can be applied in family homes, cottages, laboratories, restaurants, hospitals, and also in industry.

Water enters the inlet port of the UV reactor and flows around a powerful mercury lamp located inside a thermally protected quartz tube. Ultraviolet radiation of 253.7 nm kills bacteria and viruses and damages their DNA molecular structure, thus preventing them from reproducing. At the same time, it does not introduce any changes to the chemical content of the water and does not create by-products. Ultraviolet radiation is completely harmless, environmentally friendly, easy, inexpensive, and the most modern method of disinfection.

Safety is paramount. Without it, there would be no point in discussing disinfection (for example, a single colony of Escherichia Coli bacteria is enough to cause illness). Therefore, VIQUA UV lamps guarantee absolute certainty, stemming from global experience in water disinfection over the last 90 years. Sterilight UV lamps are manufactured in Canada and are of very high quality.

The individual models of UV lamps differ in maximum flow rate, i.e., the flow rate at which they can still ensure a water irradiation intensity of 40 mJ/cm2, according to Czech legislation.

Please note that for the UV lamp to function properly, mechanical pre-filtration of the water is necessary. We usually use mechanical filters from our range. We recommend the pre-filter PX 60 or PX 80.

For connecting the UV lamp, we recommend using surge protection UV Protect S PO20 in the socket before the transformer. This will protect the UV lamp and transformer from surges caused by current spikes or storms.

For the proper functionality of the device, we recommend installation by our authorized service throughout the Czech Republic. The installation cost depends on the complexity of the installation and the materials used.

Package contents:

• UV lamp
• UV bulb

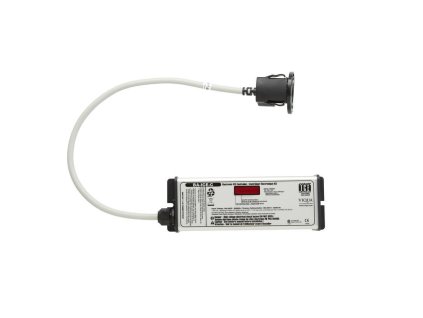

• power supply

Design of possible VIQUA UV lamp connection:

Requirements for incoming water:
-      Iron – max. 0.3 mg/l.
-      Manganese – max. 0.05 mg/l.
-      Water hardness – max. 2.5 mmol/l.
-      Mechanical pre-filtration is necessary.

Never handle the UV bulb with bare hands; always use, for example, a dry paper towel. Handling with bare hands significantly reduces the lifespan of the bulb.
