Product detailed description

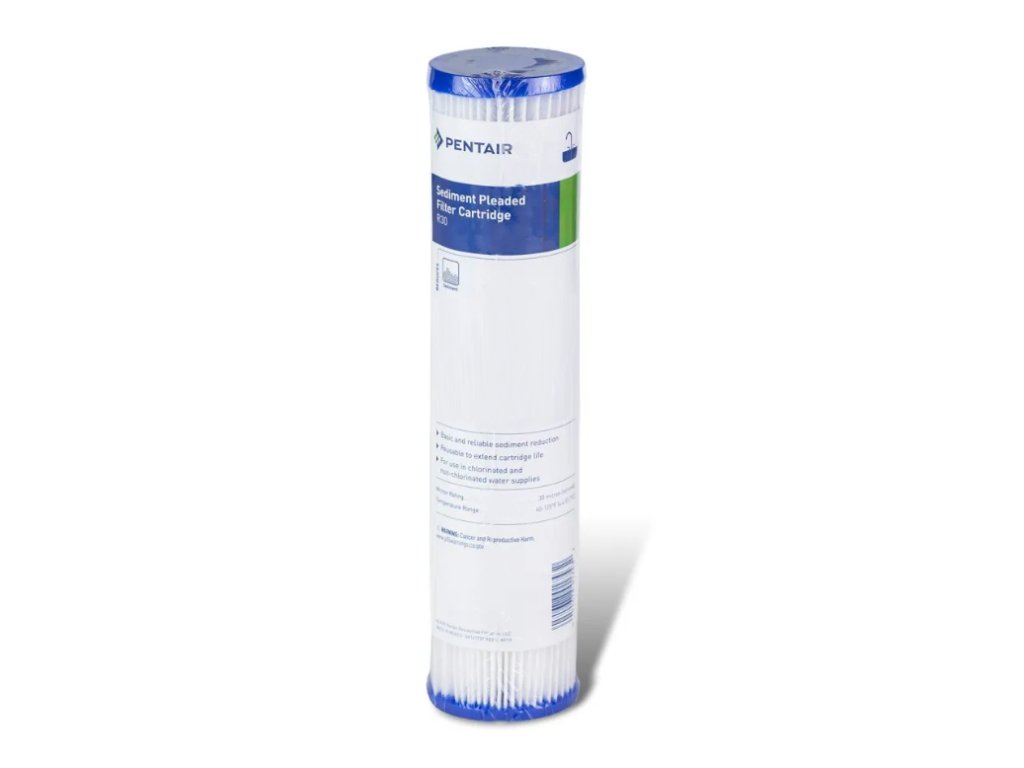

Replacement filter cartridge with filtration fineness of 30 microns for removing mechanical impurities from water. It is suitable for use with the 20" SL filter type or with AQ TUBE filter 20“.
The filter cartridge is made of d durable non-woven polyester. The polyester filter material is wrapped around an internal reinforcing core that ensures high resistance to pressure shocks. The ends of the filter material are embedded in thermoplastic vinyl plastisol for a perfect seal between the filter material and the cartridge lid.
These filter cartridges are resistant to bacterial and chemical contamination, making them suitable for home, commercial, and industrial use.
Leaf construction of the cartridge allows for the retention of several times larger amounts of mechanical particles compared to standard cartridges. Therefore, this type of cartridge is also recommended for filtering turbid water, which contains a larger number of impurities.
The cartridge allows for manual rinsing for reusable purposes. However, we do not recommend rinsing the cartridge more than 3 times.
Technical parameters:
The product is certified and intended for contact with drinking water.
- Material: 100% non-woven polyester
- Length of cartridge: 20"
- Size: SL
- Micron rating: 30 mcr
- Dimensions: 508 x 67 mm (20“ x 2.5“)
- Inner core and cage: 100% polypropylene
- Inner diameter: 28 mm
- Caps: vinyl plastisol
- Max. operating pressure: 8 bar
- Max. pressure difference: 0.8 bar
- Operating temperatures: 4 - 52 °C
- Cartridge efficiency: up to 95 %
Additional parameters
| According to the type of filter: | Accessories |
|---|---|
| According to type and use: | Filtration cartridges |
| Filtration cartridges and refills: | Mechanical filters |
