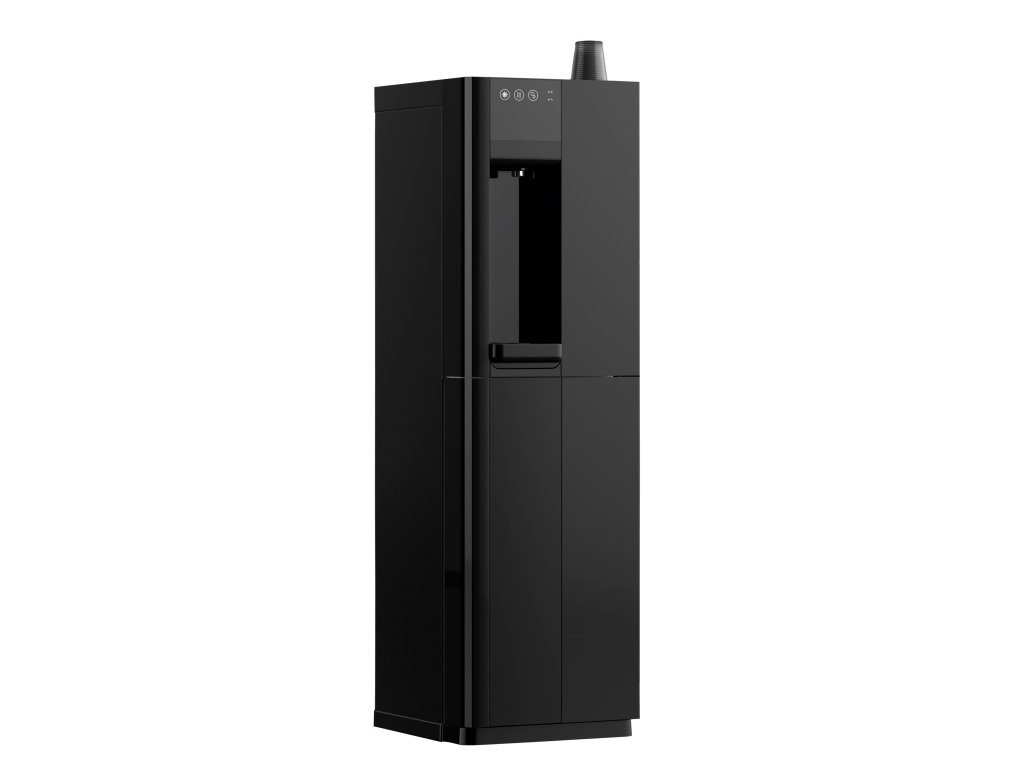

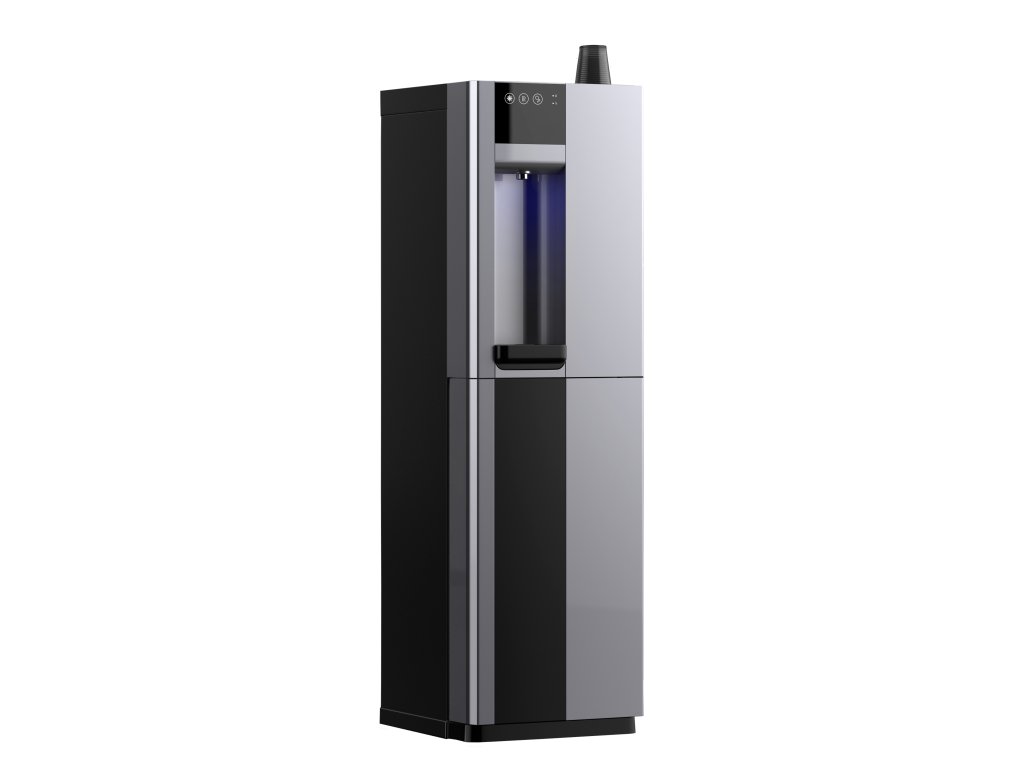

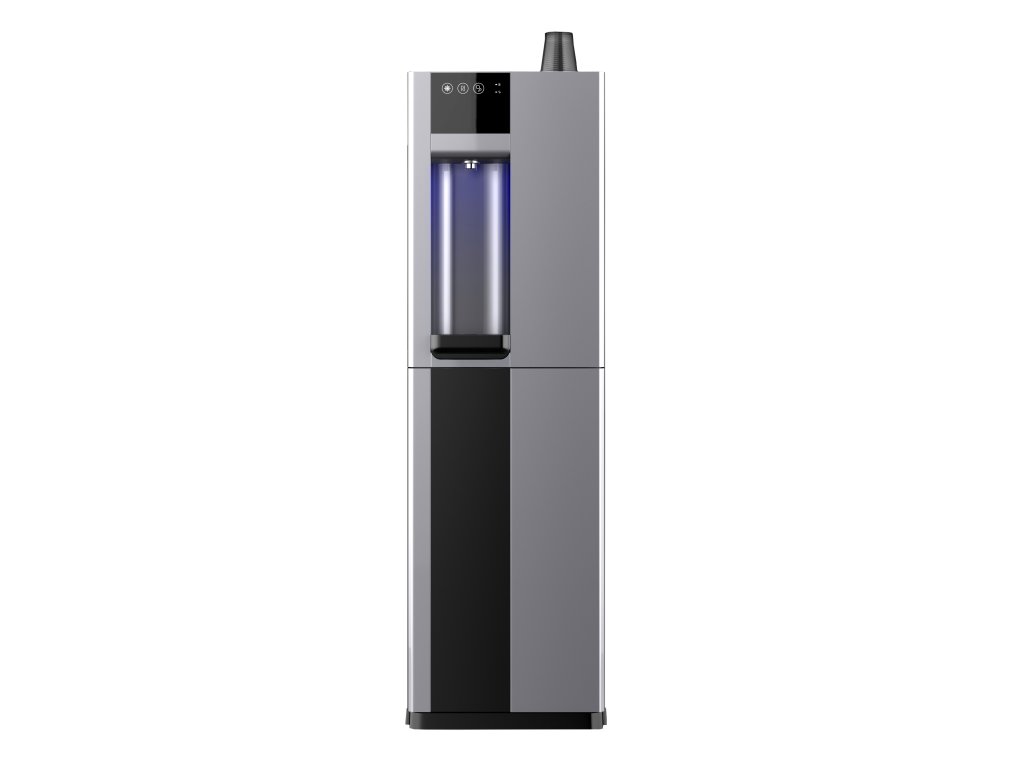

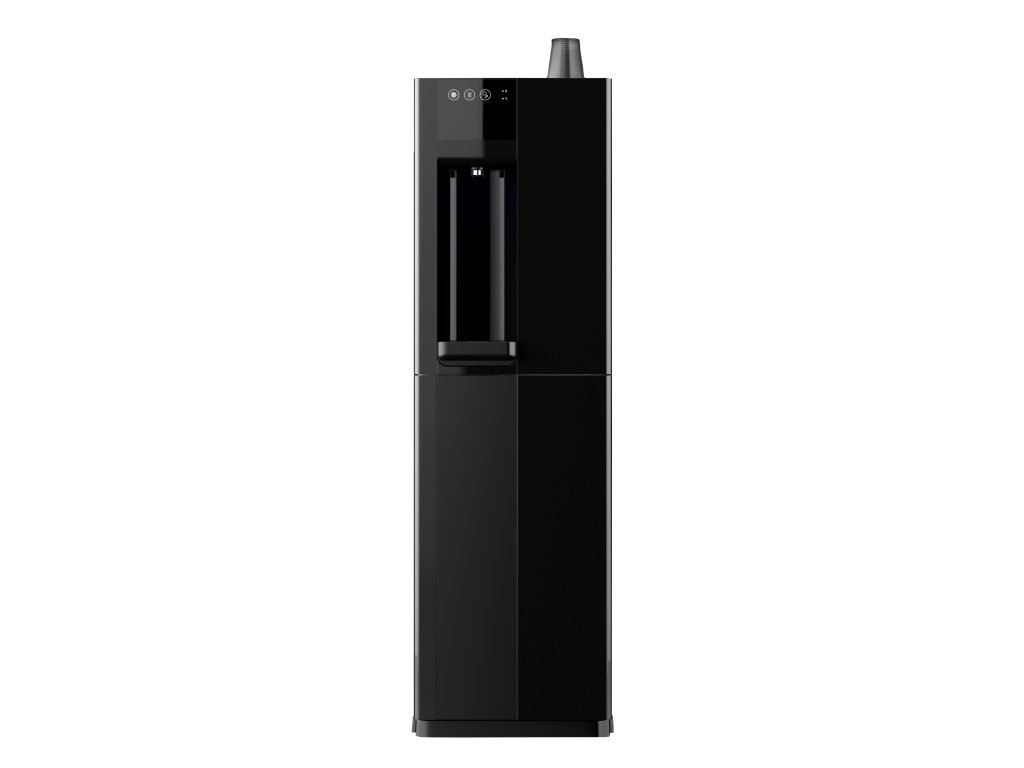

Water Dispenser CLASSIC

Product detailed description

Dispenser CLASSIC with connection to the water supply is a reliable design water dispenser for ensuring quality drinking water for you and your surroundings. Thanks to the new cooling and heating technology via a continuous cooling and heating coil, there is no need for tanks for hot or cold water - performance of 30 l/h cold water, 6 l/h hot water, carbon filtration with silver, filter cartridge life of 10,000 l. Ideal for businesses, offices, hallways, and anywhere you need to have drinking water readily available due to this smaller dispenser.

The Classic Dispenser offers four variants:

• AC – room temperature and chilled water
• HCA – hot, room temperature, and chilled water
• HCS - hot, chilled, and sparkling water
• ACS - room temperature, chilled, and sparkling water

Advantages:

• Attractive design and practical touch control
• Silver or black color resistant to wear
• Illumination of the area during water dispensing
• Large space for a glass or bottle (26 cm)
• Light signal for ready water
• High heating performance of 6 l/h and cooling of 30 l/h – hot or chilled water is always available
• Integrated reservoir for plastic cups
• Easy service replacement of filter cartridges
• Antibacterial materials, efficient carbon filtration with silver, filter cartridge life is 10,000 l
• No need for connection to drainage – the dispenser is equipped with a drip tray

Technical data:

Power supply: 220-240 V/50 Hz

Maximum power consumption:

Room temperature, chilled - 100 W
Hot, room temperature, chilled - 550 W

Maximum temperature:
Hot water – 92°C
Chilled and room temperature – min. 2°C/max 11°C

Flow rate per hour:
Chilled water - 30 l/h
Hot water - 6 l/h
Filter life - 10,000 l

Maximum water pressure: 4 bar

• In case of water pressure above 4 bars, it is necessary to equip the unit with a pressure reducing valve, we recommend pressure reducing valve with manometer
• In case of water pressure above 3 bars, we recommend purchasing Hunter pressure reducing valve

One Classic Dispenser is recommended for 20 people.
Dimensions of the Classic Dispenser (w × d × h): 325 × 380 × 1065 mm
Dimensions of the space for dispensing treated water (w x d x h): 135 x 100 x 265 mm

The dispenser base does not accommodate a 5 kg CO2 bottle with a height of 690 mm or a 6 kg CO2 bottle with a height of 790 mm. The pressure bottle must be installed outside of the dispenser. In case of a requirement to place the pressure bottle inside the dispenser column, we recommend the Dispenser Classic L.

Carbon filtration: High-capacity carbon filter with limestone formation elimination.

The dispenser is standardly equipped with a drip tray with a blocked outlet. This outlet can also be potentially connected directly to the drainage, or it is possible to order additionally a 10 l retention tank, where the water from the tray will flow, with an audible signal for its 80% filling.

Installation and service of the device

Installation is ensured by our own service technicians throughout the Czech Republic and Slovakia. The installation price starts from 1,980 CZK  + travel expenses of 16 CZK/km or a flat rate of 990 CZK (outside Prague, Brno) / 1490 CZK (Prague, Brno) in case the technician's travel is combined with other installations or service on the way (we have 16 technicians distributed across all regions). The installation price is indicative, depending on the difficulty of the installation and the used materials.

Service replacements are performed 1 x every 6 months according to water consumption. The price of the service replacement is 2,690 CZK + travel expenses, which are charged at a flat rate of 590 CZK (for Prague and Brno 990 CZK) if the technician's travel is combined with other installations or service on the way. Or 14 CZK/km if it is only the technician's trip - paid in cash to the technician.

Service replacement includes the work of an authorized technician, replacement of filter cartridges, disinfection, inspection, and adjustment of the filter.
