Water Dispenser CLASSIC L
Code: 1176/AC2 1176/HCS2 1176/ACS2 1176/HCA2 1176/AC3 1176/HCS3 1176/ACS3 1176/HCA3 Choose variantRelated products
Product detailed description

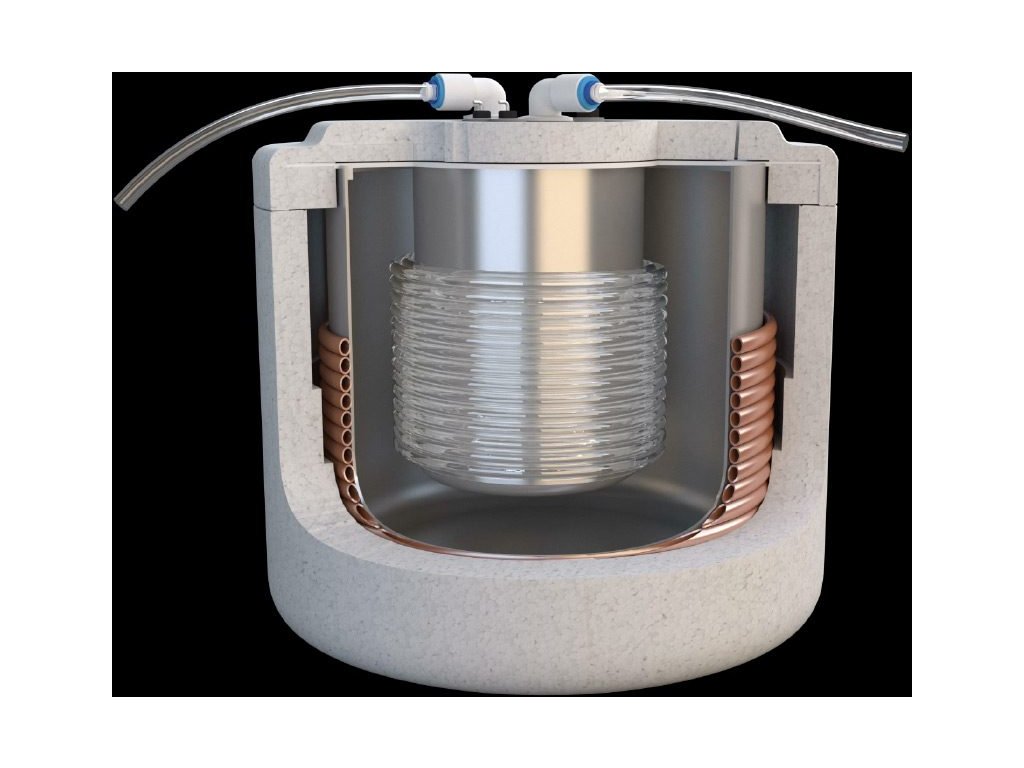

The CLASSIC L Dispenser is a reliable, stylish sparkling water dispenser connected to the water supply to ensure high-quality drinking water for you and your surroundings. Thanks to the new cooling and heating technology through a flow cooling and heating coil, there is no need for tanks for hot or cold water - performance of 35l/h of cold water, 6l/h of hot water, high-performance carbon filtration with scale elimination, filter cartridge lifetime of 10,000l. Ideal for businesses, offices, hallways, and anywhere you need to have drinking water readily available due to this smaller dispenser.
You can choose from the following variants of the Dispenser Classic L:
- AC – room temperature and chilled water
- ACS – room temperature, chilled, sparkling water
- HCA – hot, chilled, and room temperature water
- HCS – hot, chilled, and sparkling water
Features and Benefits
- Attractive design and practical touch control
- Silver and black color resistant to wear
- Tall design without the need to bend when dispensing water
- Lighting in the dispensing area when pouring water
- Large space for a glass or bottle (27 cm)
- Visual indication of ready water
- High heating performance of 6l/h and cooling of 35l/h – hot or chilled water is always available
- One Dispenser Classic L is recommended for 30 people.
- Integrated container for plastic cups
- Pressure pump up to 6 kg fits in the dispenser column.
- Simple service exchange of filter cartridges
- Option to install only the upper part on the kitchen counter - MINI version
- Antibacterial materials, high-performance carbon filtration with scale elimination, filter cartridge lifetime is 10,000l

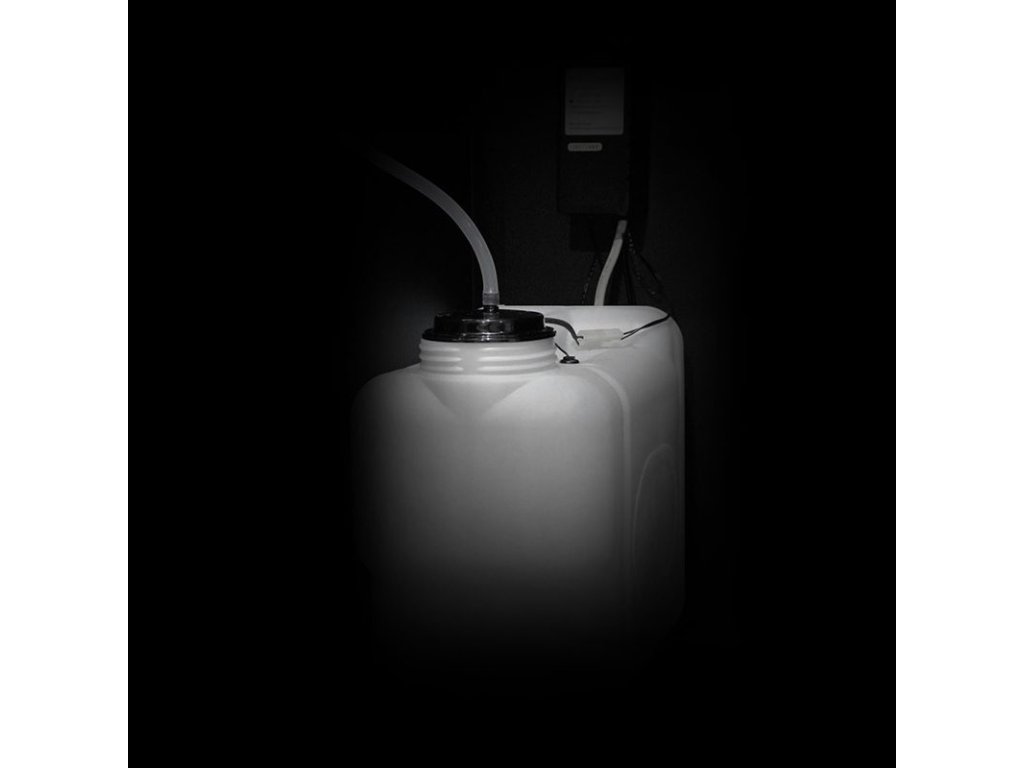

- No need to connect to drainage – inside the dispenser, it's possible to install a 10l reservoir for dripping water with an audio signal at 80% fill level.
Technical Data
Maximum power consumption | Flow chilled water | Flow hot water | Flow sparkling water | Flow room temperature water | |
AC | 100 W | 35 l/h | - | - | 60 l/h |
ACS | 140 W | 35 l/h | - | 30 l/h | 60 l/h |
HCA | 550 W | - | 6 l/h | - | 60 l/h |
HCS | 640 W | - | 6 l/h | 30 l/h | 60 l/h |
Maximum water pressure: 4 bar
- If the water pressure exceeds 4 bars, it is necessary to equip the unit with a pressure reducing valve; we recommend a pressure reducing valve with a manometer.
- If the water pressure exceeds 3 bars, we recommend purchasing a Hunter pressure reducing valve.
Power supply:
- 220-240 V/50 Hz
Maximum temperature:
- Hot water – 92°C
- Chilled and room temperature – min. 2°C /max 11°C
Dimensions:
- Dimensions of the Dispenser Classic L (w × d × h): 320 × 470 × 1325 mm
- Dimensions – top part (MINI version) (w × d × h): 320 x 470 x 475 mm
- Dimensions of the space for dispensing treated water (w x d x h): 135 x 100 x 270 mm
Filtration
- Carbon filtration: High-capacity carbon filter with scale formation elimination.
- The lifetime of the filtration is 10,000 liters.
You should know
- By default, the dispenser is equipped with a drip tray with a blocked drain. This drain can also be connected directly to drainage, or you can order a 10 l reservoir for dripping water with an alarm, where the dripping water from the tray will flow, with an audio signal indicating its 80% fill level.
- The CO2 bottle and pressure reducing valve ARE NOT included with the Dispenser Classic L.
Recommendations for CO2 Pressure Bottles
CO2 bottle for sparkling water: The ideal size of the CO2 bottle that fits inside the dispenser column is a 6 kg CO2 bottle. A fully filled bottle is sufficient for approximately 10,000 liters of sparkling water.
Other CO2 bottle (dimensions and output) are as follows:
- 500g, dimensions 52 cm height, 6 cm diameter, approx. 1,000l sparkling water
- 2kg, dimensions 53 cm height, 10.5 cm diameter, approx. 3,000l sparkling water
- 4kg, dimensions 78 cm height, 10.4 cm diameter, approx. 6,000l sparkling water
- 6kg, dimensions 79 cm height, 14 cm diameter, approx. 10,000l sparkling water
We recommend renting a pressure bottle (so you won’t have to do annual inspections if you buy the bottle) from companies like Linde, Immergas, or others that supply pressure bottles, the annual rental costs about 400 CZK and refilling the bottle 400 CZK.
Installation and Service of the Device
Installation will be handled by our own service technicians throughout the Czech Republic and Slovakia. The installation cost starts at 1,980 CZK + travel expenses 16 CZK/km or a flat travel cost of 990 CZK (outside Prague, Brno) / 1490 CZK (Prague, Brno) in cases where the technician's trip is combined with other installations or service on the way (we have 16 technicians available across all regions). The installation cost is indicative, depending on the difficulty of the installation and the materials used.
Service exchange is performed once every 6 months based on water consumption. The cost of service exchange is 2,690 CZK + travel costs, paid flat rate of 590 CZK (for Prague and Brno 990 CZK) in cases where the technician's trip is combined with other installations or service on the way. Or 14 CZK/km in cases where it's just the technician's trip - paid in cash to the technician.
Service exchange includes the work of an authorized technician, replacement of filter cartridges, disinfection, inspection, and adjustment of the filter.
Additional parameters
Category: | Water dispensers |
---|---|
According to the type of product: | Water dispensers |
According to the type of water: | Room, Chilled, Sparkling, Hot, Filtered |
According to use: | To the company |
Execution: | Free-standing |
Power supply:: | 220-240 V/50 Hz |
Maximum temperature:: | Hot water – 92°C / Chilled and room temperature – min. 2°C / max. 11°C |
Dimensions of Dispenser Clasic L (w × d × h):: | 320 × 470 × 1325 mm |
Dimensions – upper part (MINI version) (w × d × h):: | 320 x 470 x 475 mm |
Dimensions of the space for dispensing treated water (w x d x h):: | 135 x 100 x 270 mm |
Space for a glass or bottle:: | 27 cm |
? Filtration:: | Carbon filtration |
Lifespan of filtration:: | 10,000 liters |
Touch control:: | yes |
Lighting the area while filling water:: | yes |
Water readiness light signal: | yes |
