Water pressure reducing valve with pressure gauge 3/4"

Code: AQC0001435
Not rated
€27,96 €23,11 excl. VAT
In stock

Protection against sudden changes in water pressure.

Detailed information

Product detailed description

The pressure reducing valve for water supply is installed when there is high pressure in the main water line or during significant pressure fluctuations.

It allows for the reduction and stabilization of water pressure and also protects against water hammer (sudden pressure change), which can cause damage to connected devices.

Material used:

The reducers are made of brass and are suitable for drinking water.

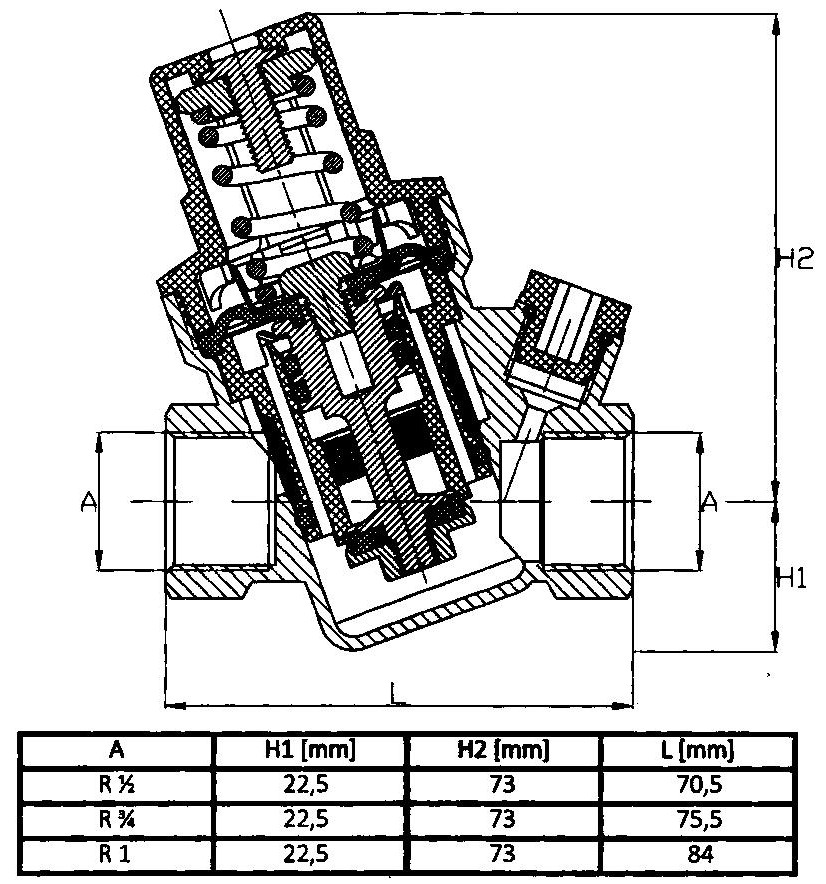

Technical specifications:

  • Connection diameter 3/4''
  • Maximum input pressure - 16 bar
  • Maximum temperature - 30°C
  • Output pressure adjustment range - 1 - 6 bar
  • Nominal volume flow - DN20 = 2.27 m3/h
  • Factory setting - 3 bars
  • Pressure gauge connection - G 1/4

Additional parameters

Category: Accessories for water filters
According to usage: Reducing valve
