Water softener OP 100-210
Code: AQC0001423 196/OP2 196/OP3 AQC0001886 Choose variantRelated products
Product detailed description
Commercial and medium industrial water softeners OP 100 - 210 are fully automatic and efficient systems for water softening that effectively remove calcium and magnesium salts. If you need a device with an instantaneous water flow ranging from 4 m³/h to 5.7 m³/h, this range of softeners is an ideal choice.
The OP softeners feature a traditional design, consisting of a fiberglass tank for filtration media and a separate plastic tank for regenerating salt. This design allows for the use of a larger salt tank and filtration media tank, which increases the softener's capacity and water flow.

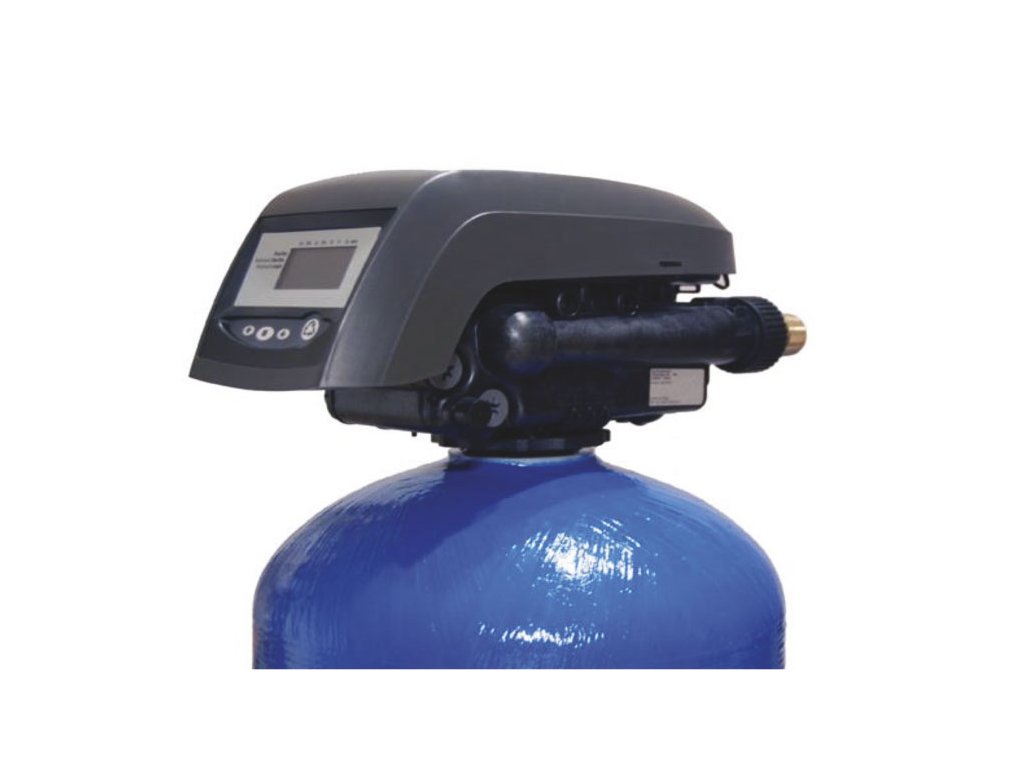

Pentair Autotrol 278 control valves utilize a proven cam shaft and disk system. Due to their modular design, these valves are versatile and suitable for various applications.
The Autotrol 278 Performa Cv valve series is designed for medium-sized industrial and commercial applications (e.g., for apartment buildings, guesthouses, and hotels). With a maximum filtration flow of up to 5.7 m³/h and a backwash speed of 4.5 m³/h, these valves can also be used with pressure vessels up to 21" in diameter.
The Autotrol 278 Performa Cv valve is equipped with Logix 762 or 764 control units, which allow for easy programming and detailed settings for each regeneration cycle for maximum operational efficiency. The valve also allows for connection to a central control room for remote regeneration initiation.
Logix automatic regeneration monitors water consumption for the past 28 days and adjusts regeneration cycles to current consumption. This saves not only water but also regenerating salt. If consumption is lower, regeneration is automatically postponed.
During the regeneration of the filtration media, the valve does not close the outlet and allows access to untreated water during this process. Regeneration occurs at night, when water consumption is very low or non-existent.
Extended 3-year warranty.
Technical data:
- Control unit: Autotrol 278/762
- Valve control: volumetric (capacity)
- Device programming: fully programmable
- Pressure vessel: Pentair Structural, fiberglass
- Valve body: Fiberglass reinforced Noryl®
- Filtration media: Resinex KW-8
- Operating pressure: 1.38 - 8.61 bar
- Electrical voltage: 230V/50 Hz
- Power consumption: 5 W

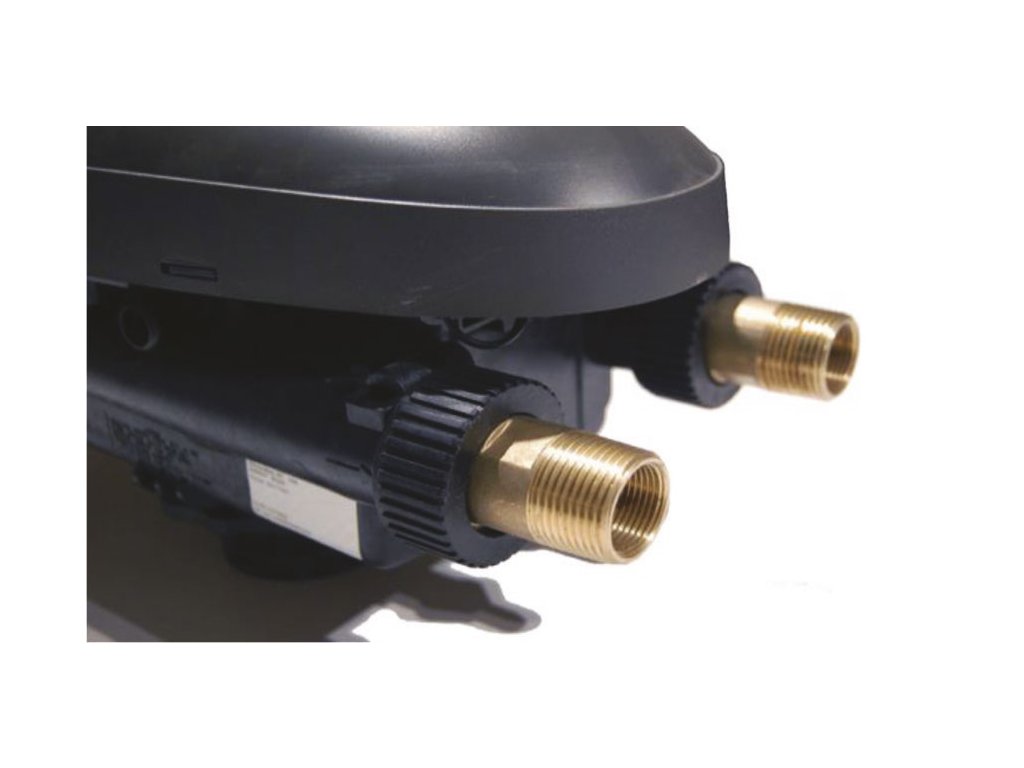

- Inlet and outlet connections: brass 1", external thread
- Operating temperatures: 2–38 °C
- Ambient temperature: 0 - 50 °C
- Salt storage: PP
- Internal by-pass, for mixing: Yes
The product is certified and intended for contact with drinking water.
- A pre-filter for mechanical impurities must be installed before each softener.
- Near the filtration, it is necessary to have a connection to the drain, where sedimented calcium, and possibly iron and manganese, are discharged from the filtration.
Name | Height (mm) | Salt container diameter (mm) | Salt container (l) | Pressure vessel (") | Pressure vessel diameter (mm) |
Mounting height of connections (mm) |
OP 100 | 2045 | 540 | 200 | 14x65 | 360 | 1865 |
OP 120 | 2045 | 540 | 200 | 16x65 | 410 | 1865 |
OP 170 | 2105 | 720 | 300 | 18x65 | 464 | 1925 |
OP 210 | 1985 | 720 | 300 | 21x60 | 540 | 1805 |
Name | Media quantity (liters) |
Lower support volume (liters) |
Salt consumption (kg/1 regen.) |
Water consumption (l/1 regen.) | Nominal flow (m³/h) * |
Maximum flow (m³/h) ** |
Flow during backwash (m³/h) |
OP 100 | 100 | 6 | 12 | 400 - 500 | 4 | 5 | 1.3 |
OP 120 | 120 | 7.5 | 14.4 | 480 - 600 | 4.8 | 5.7 | 1.7 |
OP 170 | 170 | 15 | 20.4 | 680 - 850 | 5.7 | 5.7 | 2.5 |
OP 210 | 210 | 18 | 25.2 | 840 - 1050 | 5.7 | 5.7 | 3.2 |
* Nominal flow – flow for continuous operation of the filter. The filtration efficiency does not decrease and is constant.
** Maximum flow – flow for burst filter operation. The filtration efficiency does not decrease for a maximum of 5 minutes.
After 5 minutes of operation, the filtration efficiency starts to decrease very slowly.
Transport of the filtration device
We recommend sending the device on a pallet to avoid damage during transport. If you are also purchasing regenerating salt along with the filtration equipment, you can add the pallet to your cart along with the salt.
Installation and service of the device
Installation and transport will be handled by our own service technicians (we have 14 authorized service technicians across the Czech Republic and Slovakia). If you are interested, we will gladly create a quote for you. The installation price depends on the complexity and the materials used (connecting hoses, valves, etc.). If you are interested in installation, please inform us in the remarks in the cart ("Enter a note for the seller").
We recommend performing the service exchanges regularly once a year. The price for the service exchange is 1,990 CZK + travel costs, which is charged a flat fee of 590 CZK (for Prague and Brno 990 CZK) if the technician's trip is combined with other installations or service on the way.
Additional parameters
Category: | Water Softeners |
---|---|
According to the connection: | On the water supply line |
According to the type of filter: | For hard water, For water from a well |
According to the variant of water treatment: | Economic option |
According to usage: | For industry |
By type: | Katexové |
Product type for water treatment: | Water Softeners |
