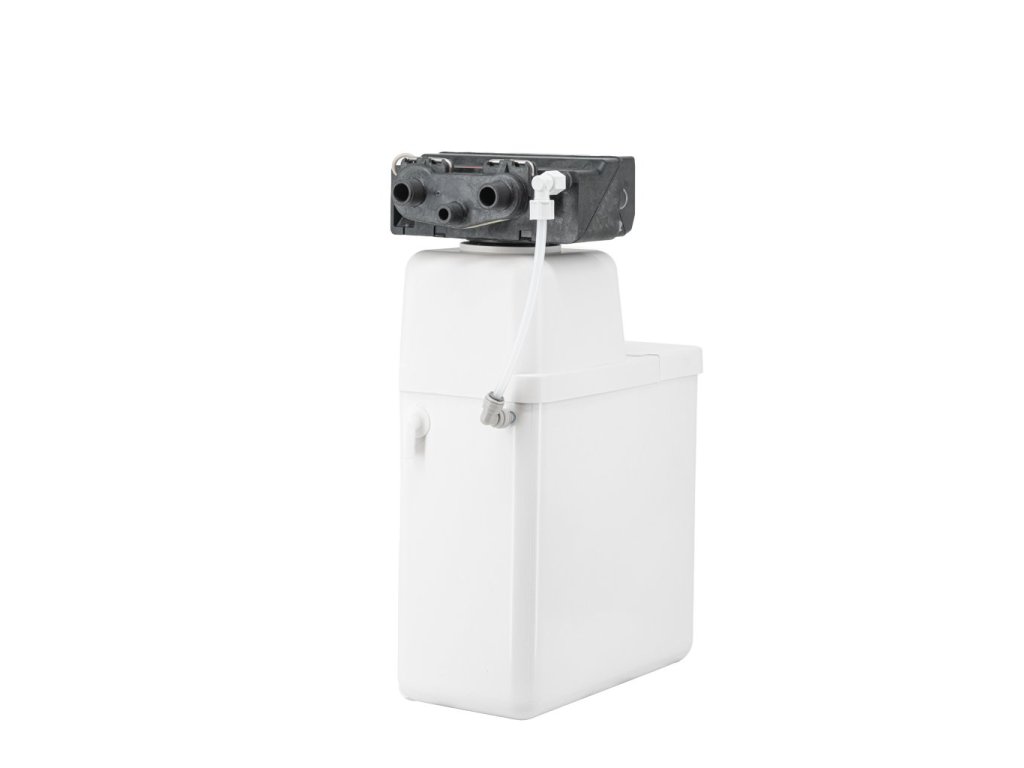

Water Softener OPC MINI 05 - volumetric - 368

Code: AQC0001375
Not rated
€399,60 €330,25 excl. VAT
In stock; available within 1–3 days
Programming the control head

Compact water softener OPC MINI 05 for household use, automatic maintenance-free operation, suitable for a single outlet point (e.g., for one appliance). Regeneration occurs volumetrically - based on flow.

Detailed information

Product detailed description

OPC MINI 05 Softener is designed for a single point of use. Due to its small size, it is suitable for use in gastronomy, e.g., for coffee machines, ice makers, etc.

Softening devices are fully automated and do not require any operator attention. Only about once every 14 days is it necessary to check the salt container. If the water level in the container is higher than the salt level, the salt needs to be replenished. The lifespan of the filter media is 8 to 12 years.
These devices are approved for use with drinking water.

Operating Principle

Hardness (calcium and magnesium salts) and other impurities are removed using filter media. The water softener contains ion exchange resin (known as ionex, catex) that replaces positive cations of compounds in the water, such as Ca2+, Mg2+, etc., with sodium ions Na+.

During the regeneration of the device, hardness and other captured impurities are removed from the filter media and flushed away. At the same time, the ability of the filter media to bind cations of salts is restored using a saline solution.

This OPC MINI 05 softener is equipped with a Pentair Autotrol 368/606 control valve with an integrated turbine, and the filter media is regenerated based on water flow – capacity regeneration.

Technical Specifications

  • Weight (without media): 0.2 kg
  • Filter media: Resinex KW-8
  • Max. flow rate: 0.4 m3/h
  • Recommended number of users: 1-2
  • Max. operating pressure: 8.61 bar
  • Max. water temperature: 38°C
  • Min. operating pressure: 1.38 bar
  • Amount of media: 5 liters
  • Nominal flow rate: 0.3 m3/h
  • Connection: 3/4“
  • Salt consumption per regeneration: 0.6 kg
  • Control unit type: Autotrol 368/606
  • Dimensions (W x H x D): 225 x 560 x 444 mm
  • Installation height of connections: 515 mm

Transport of Filtration Equipment

We recommend shipping the device on a pallet to avoid damage during transport. If you are purchasing regeneration salt along with the filtration device, you can add the pallet to your cart together with the salt.

Installation and Service of the Device

Installation and delivery will be provided by our own service technicians (we have 14 authorized service technicians throughout the Czech Republic and Slovakia). If you are interested, we would be happy to provide you with a price quote. The installation price depends on the complexity and materials used (connecting hoses, valves, etc.).  If you are interested in installation, please let us know in the comments section of the cart ("Add a comment for the seller").

We recommend service exchanges to be performed regularly once a year. The cost of service exchange is 1,990 CZK + travel expenses, which is a flat fee of 590 CZK (for Prague and Brno 990 CZK) if the technician's travel is combined with other installations or services along the way.

Additional parameters

Category: Water Softeners
According to the connection: On the water supply line
According to the type of filter: For hard water
According to the variant of water treatment: Economic option
According to usage: For households
By type: Katexové
